INFUPEEL DIANET PA80

3 layer vacuum infusion complex

INFUPEEL DIANET PA80 are multilayer systems used in manufacturing processes for vacuum infusion of composite materials.

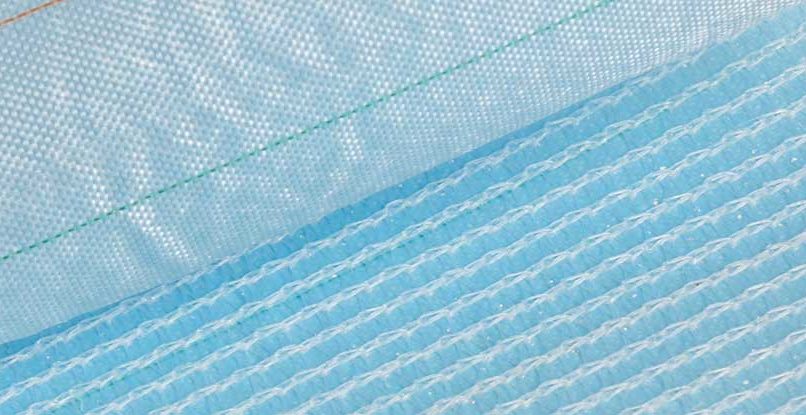

The systems combine three vacuum consumables into a three-layer unit: a peel ply, a perforated film ELA20P0 permeable to resin and gases, a net bleeder on top.

Used in manufacturing processes for vacuum infusion of composite materials.

De-oiled.

Heat set.

This easy-to-use solution eliminates the technical risk of overlap or of the omitted layer.

Save time and optimise the production with INFUPEEL.

Max.
temp
.
Global
weight
Net
bleeder
Perforated
film
Use with
resins
Resin flow
speed
90°C 239 g/m² DIANET 135

135gr/m2

ELA20 P0

+ PA80

All resins

< 90°C

High speed

If you want another Infupeel Dianet you can choice  INFUPEEL DIANET PA90 (ELA20 P0+PES90)
