Ancillaries for RTM moulds

MOULD LOCATION CONE

CO-MM-0020

Machined cone to be bolted to flange between inner and outer seals.
The cone gives positive X-Y-Z location between the upper and lower mould surfaces.M8x50 bolts and nuts INCLUDED.
INJECTION VALVE
V400 Valve
V400 System

For RTM & RTM Light

CO-XE-0015

For RTM & RTM Light

CO-XE-0018

Included:

  • 1 injection valve XE-0015SS
  • 1 resin injection hose + resin quick coupler connector – XE-001605
  • 1 control valve – XE-0017

Stainless steel

CO-XE-0015SS

Version INOX

CO-XE-0018SS

Temp. 180°C

CO-XE-0015HT



Designed to be fitted into threaded mould insert MM-1501 or used with 20 mm mould insert MM-0014.
√ :     10mm Nylon waste pipe & connector INCLUDED
X :     MM-1501 & MM-014 inserts MUST BE ORDERED SEPARATELY



CONTROL SYSTEM

CO-XE-0017

Control valve to open/close the injection valve XE-0015 from signal input from CIJECT injection machine.

Supplied with necessary fittings and pipes + male quick connector for open signal.

RESIN PIPES (for quick pluging)
CO-XE-001605 Resin injection hose and fittings + resin quick coupler connector 50 cm
CO-XE-0016010 100 cm
CO-XE-001615 150 cm
INFUSION CONNECTORS

CO-XE-0317

To use with PE 10-12 pipe.

CO-XA-0313

To use with PE 14-16 pipe.
AIR EJECTORS

CO-XE-0020

Mould air ejector valveeeee

Valve designed for the safe removal of the moulded component from the mould.
For inclusion into the laminated mould, allowing easy removal.INCLUDED MM-2001 insert.

CO-MM-2007

Air ejector insert blanking plug

Machined DELRIN insert to block MM-2001 air ejector if not fitting the XE-0020 air ejector.

CO-XE-0021

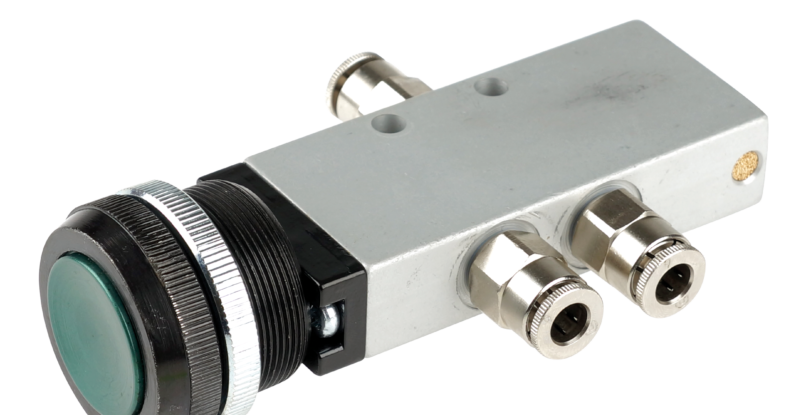

Control button for air ejector

Pneumatic button to control openings and closings of the air ejector valve.
It can be mounted on the mould framework.Supplied with 2m of 6mm nylon pipe.

CO-MM-2001

Insert for air ejector

Machined steel insert.
To suit XE-0020 air ejector.INCLUDED FITTING + AIR EJECTOR
