IMPS : In Mould Pressure Sensor System
| READOUT UNITS | ||
|

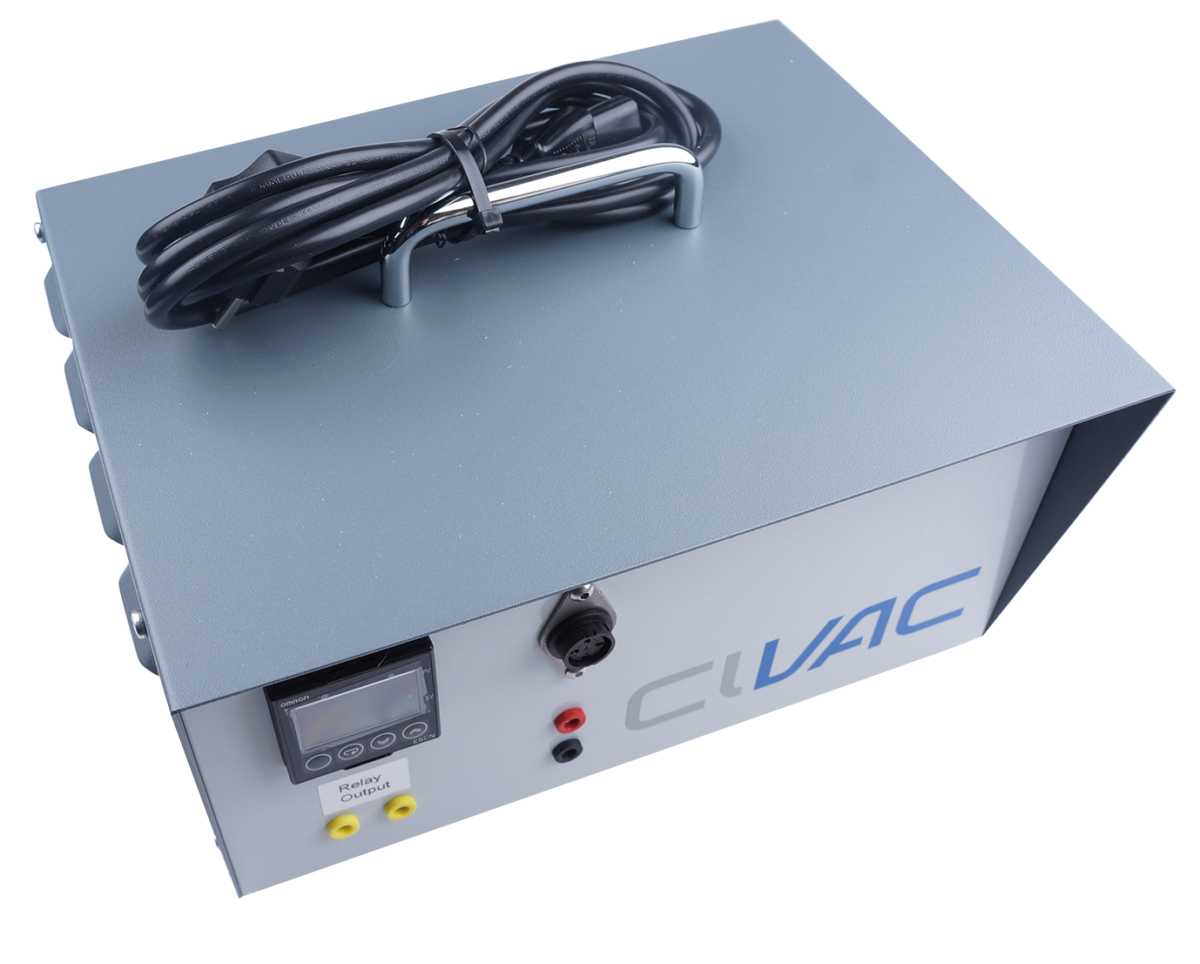

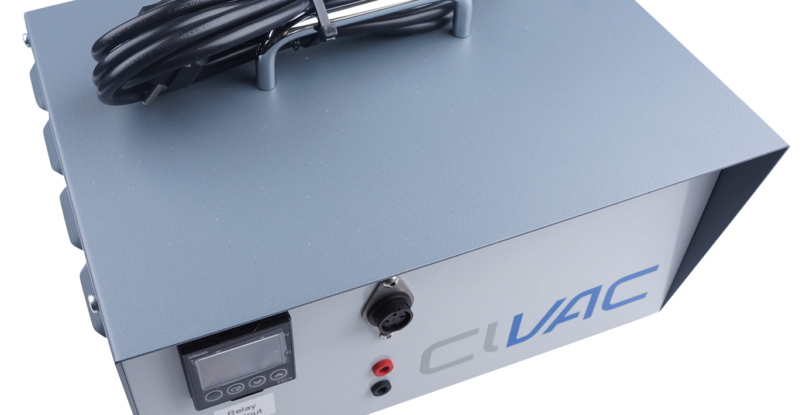

1 SENSOR INPUT
CO-XE-0051 Included 220V AC supply |
4 SENSOR INPUTS
CO-XE-0053 4 sensor inputs – 1 selector switch |
8 SENSOR INPUTS
CO-XE-0057 8 sensor inputs – 1 selector switch |
| LED readout unit to display pressure reading (in bar). Upper display shwos current pressure. Lower display is used in conjunction with optional control valve (XE-0052) ansd set by the operator. If the set pressure is exceeded, the control valve is actuated. |
||

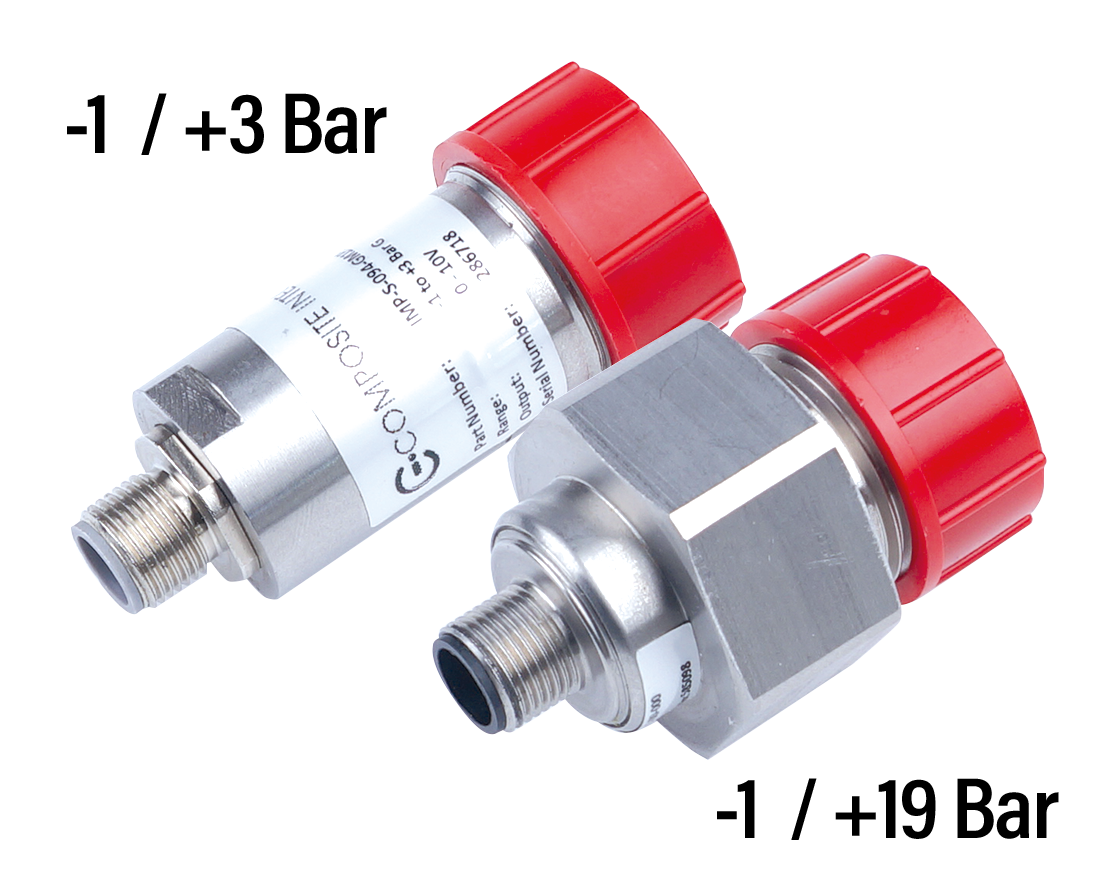

| PRESSURE SENSORS | |||
 Robust ceramic sensor.Can be mounted in any position or orientation. Resin can be cured directly against sensor face. 3/4″ BSP connection. |
|||
| Room Temperature (90°C – 194°C) | High Temperatures (120°C – 248°C) | ||
| Ref. NO cable included | Pressure | Ref. 1m cable included | Ref. 10m cable included |
| XE-0050-001 | -1 / + 19 Bar | – | – |
| XE-0050-002 | -1 / +3 Bar | XE-0050-004 | XE-0050-005 |
| XE-005A0-003 | -0 / +4 Bar (Abs) | XE-0050-006 | XE-0050-007 |
| IMPS INSERT |
|
|
CO-MM-0030
METAL Insert 3/4″ TO LAMINATE IN THE MOULD IN COMPOSITE |
For mounting into composite tools enabling a pressure sensor to be easily mounted and de-mounted. |

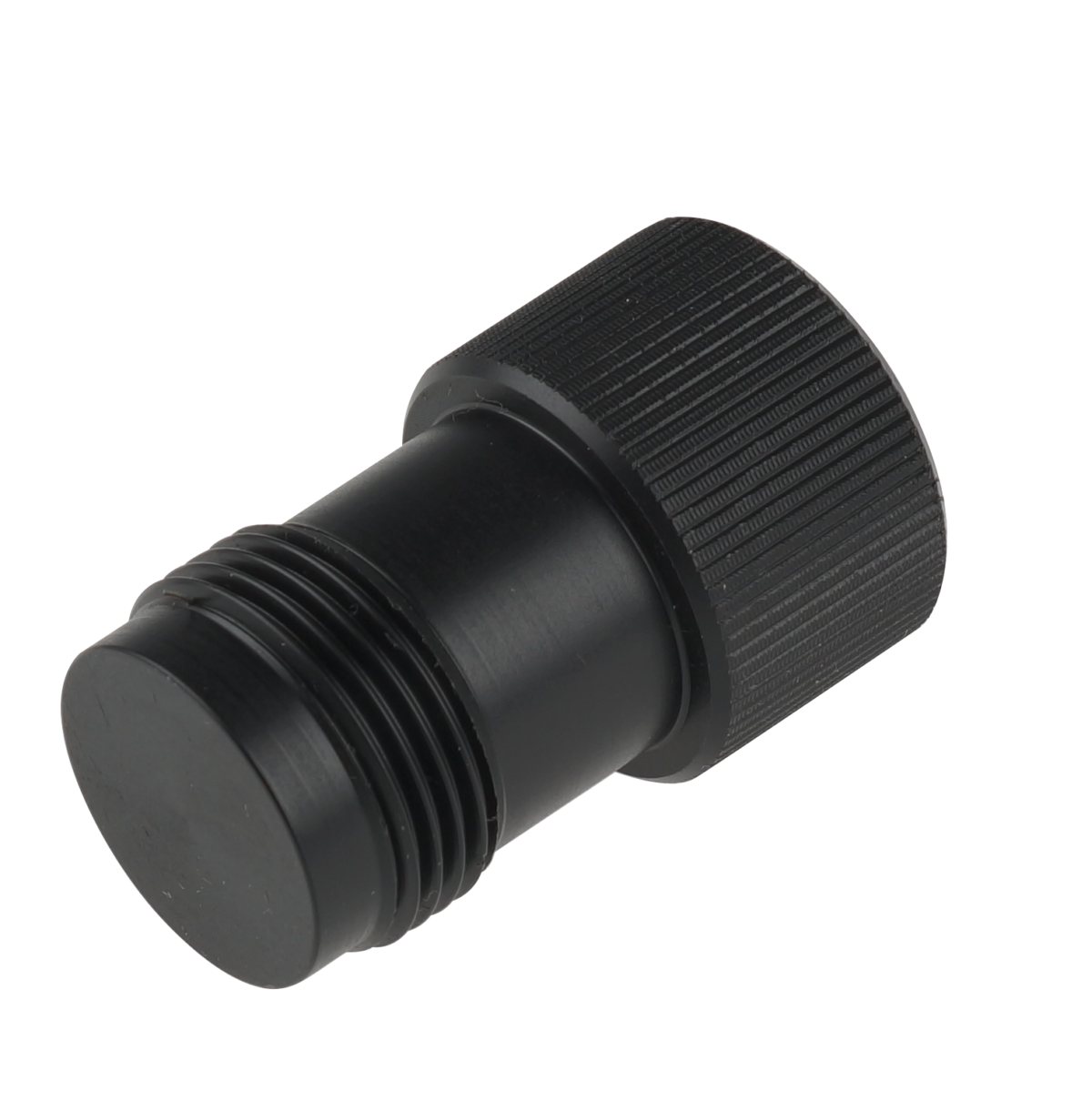

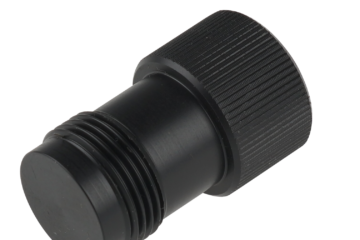

| BLANKING PLUG FOR IMPS INSERT | |
CO-MM-0033 |
To block the MM-0030 insert when not in use. |
| CABLES & CONNECTORS FOR IMPS SENSOR | |
|
CO-XE-0054
25m |
CO-XE-0055
10m |
| Cables & connectors for the attachment of pressure sensor to either a readout/control unit or a CIJECT. | |
