Mould seals
25 ml reel package.
| DYNAMIC SEALS | ||||
| REGULAR | MEDIUM | HARD | PRIMARY SILICONE SEAL | SLEEVE |
CO-RD421-001 |
CO-RD20-0013 |
CO-RD20-0011 |
CO-RD20-3340 |
CO-RD20-2057 |
| REGULAR DYNAMIC SEAL – WHITE | MEDIUM DYNAMIC SEAL – BLUE | HARD DYNAMIC SEAL – GREEN | PRIMARY SEAL FOR HOLLOW DYNAMIC SEAL | SLEEVE FOR DYNAMIC SEAL |
| To use as a resin seal in RTM & Light RTM processes. The seal is collapsed under vacuum, using the CO-RD20-2056 installation kit. | Medium version of the regular section mould seal. To use as a resin seal in RTM & Light RTM tooling. | Hard version of the hollow silicone seal. For high pressure applications. | For modeling the following dynamic groove seals : RD421-001, RD20-0011 & RD20-0013. Reusable. | Bag x 20 silicone sleeves for CO-RD421-001 hollow dynamic seal. Enables a tight connection. 4 mm x 8 mm x 4 cm. |
| LIP SEALS | ||||

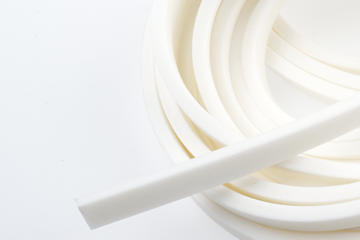

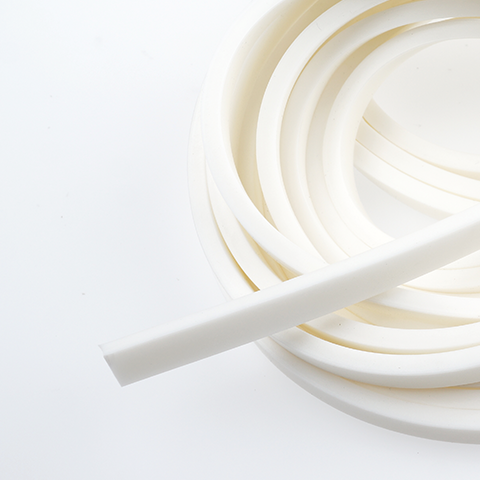

| SILICONE | PRIMARY SEAL | PRIMARY SILICONE FOAM | ||
CO-RD20-5895 |
CO-RD20-3661 |
CO-RD20-0014 |
CO-RD20-3391 |
CO-RD20-0017 |
| To position outside the mould. | Flexible lip seal. Same design as RD20-5895. | Half-sized section of the RD20-5895 standard seal. For vacuum applications when small bend radii are required. L 12 x H 10 (mm). | Silicone seal used for modeling the throat of the RD20-5895 lip seal. Reusable. | Foam silicone section to provide a correct groove during mould manufacture (silicone or neoprene), for fitting of RD20-5895 lip section mould seal. The rounded corners make the laminating easier. Non reusable. |
| SILICONE SEALS |
|
SILICONE CO-RD-CORDE0545 |
SILICONE CO-RD-CORDE0645 |
| Silicone ring diameter 5. To be embedded in metal tools. |
Silicone ring diameter 6. To be embedded in metal tools. |
| RESIN RUNNER PROFILES | |
CO-RD20-0016 |

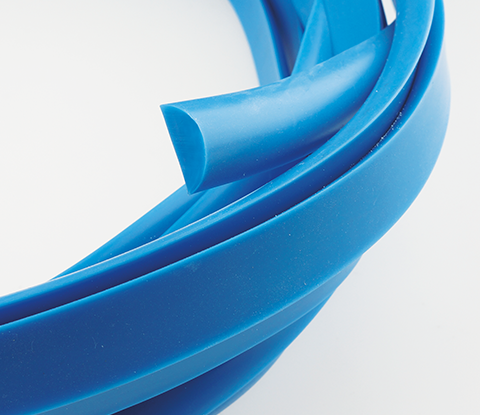

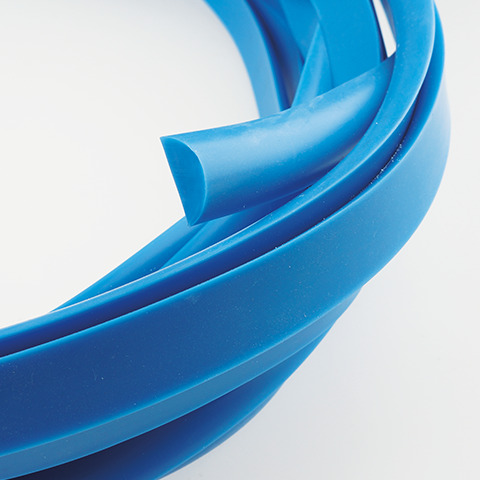

CO-RD20-4530 |
| Silicone section. Provides correct resin runner details during the RTM mould manufacture. Can be formed around vertical and horizontal radii. | Silicone seal for a perfect shaping of the canal with resin. |
| CLOSURE SEAL FOR TOOLS |
|

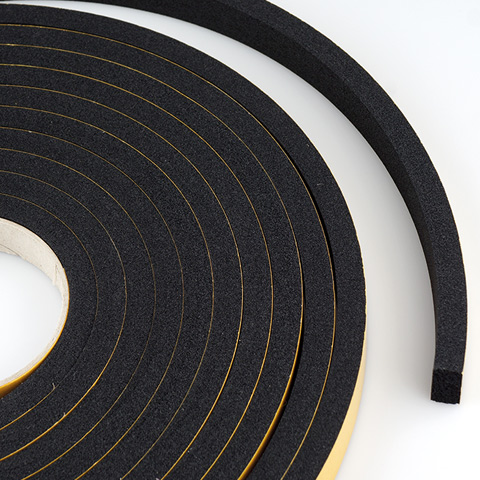

ACZEPDM20X10AD Dimensions : h 10 mm x l 20 mm. |

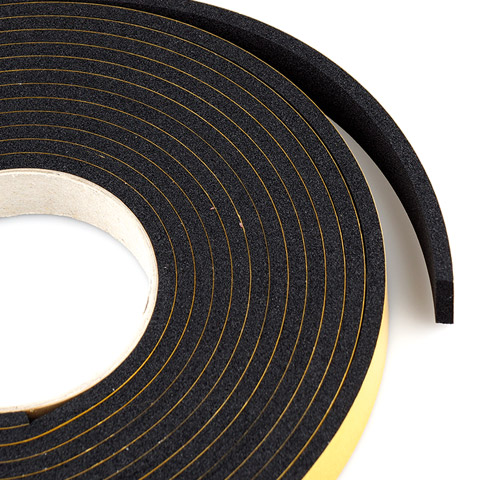

ACZEPDM20X5AD Dimensions : h 5 mm x l 20 mm. |
| Cellular rubber strip firm cells (EPDM) single-sided adhesive. Excellent sealing against water and other liquids. It has a high elastic restoring force and is exceptionally resistant to extreme temperatures. Bag of 5 coils per 10m. |
|
| ALSO | |||
Glue for silicone seals |
CO-RD-COLLE-E43/310 |
Mould seals |
CO-RD-PRIMER-G79/150 150 ml |
| CO-RD-PRIMER-G79/40 40 ml | |||
