Resin Catchpots

In addition to developing a specific range of products for the industry of composite materials in close collaboration with its partner MIL’S, DIATEX also offers a complete range of pumps with lubrificated paddles and vacuum plants with different vacuum levels adapted to vacuum applications.
Discover our range of Resin Catchpots for vacuum equipments.

Reference
and capacity
 Temp. Characteristics and
Technical data

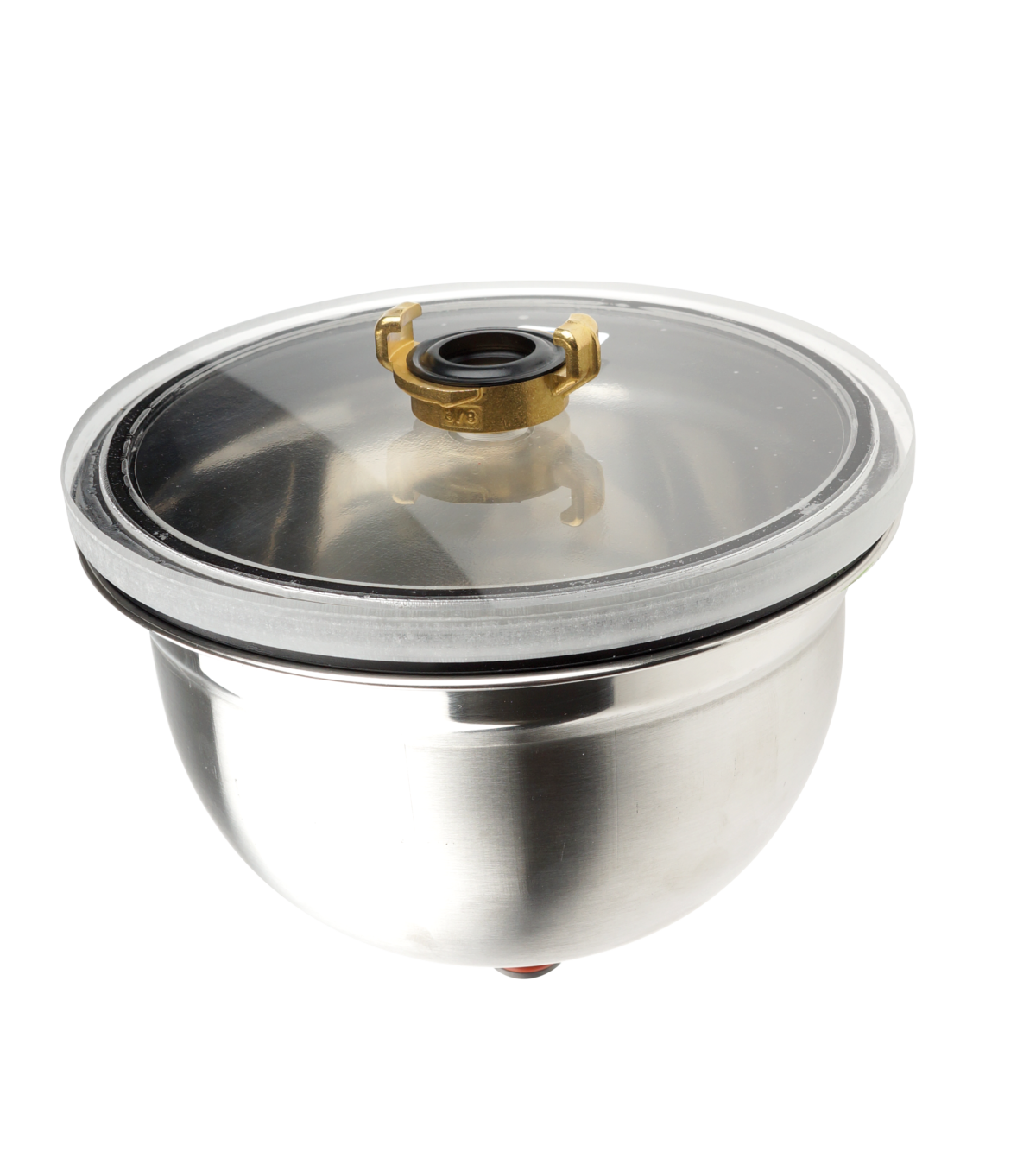

CO-XE-0213

2L

For RTM and infusion

 100°C 2 x 6 mm resin inlets

1 x 1/4″ Geka vacuum connector



  • Stainless steel with clear acrylic lid and EPDM seal.
  • Geka connector.
  • Undrilled tank – Clear lid.

CO-XE-0500

8L

For RTM and infusion

 80°C 3 x 12 mm resin inlets

1 x 10 mm 1/4″ vacuum connector for 10/12 pipe

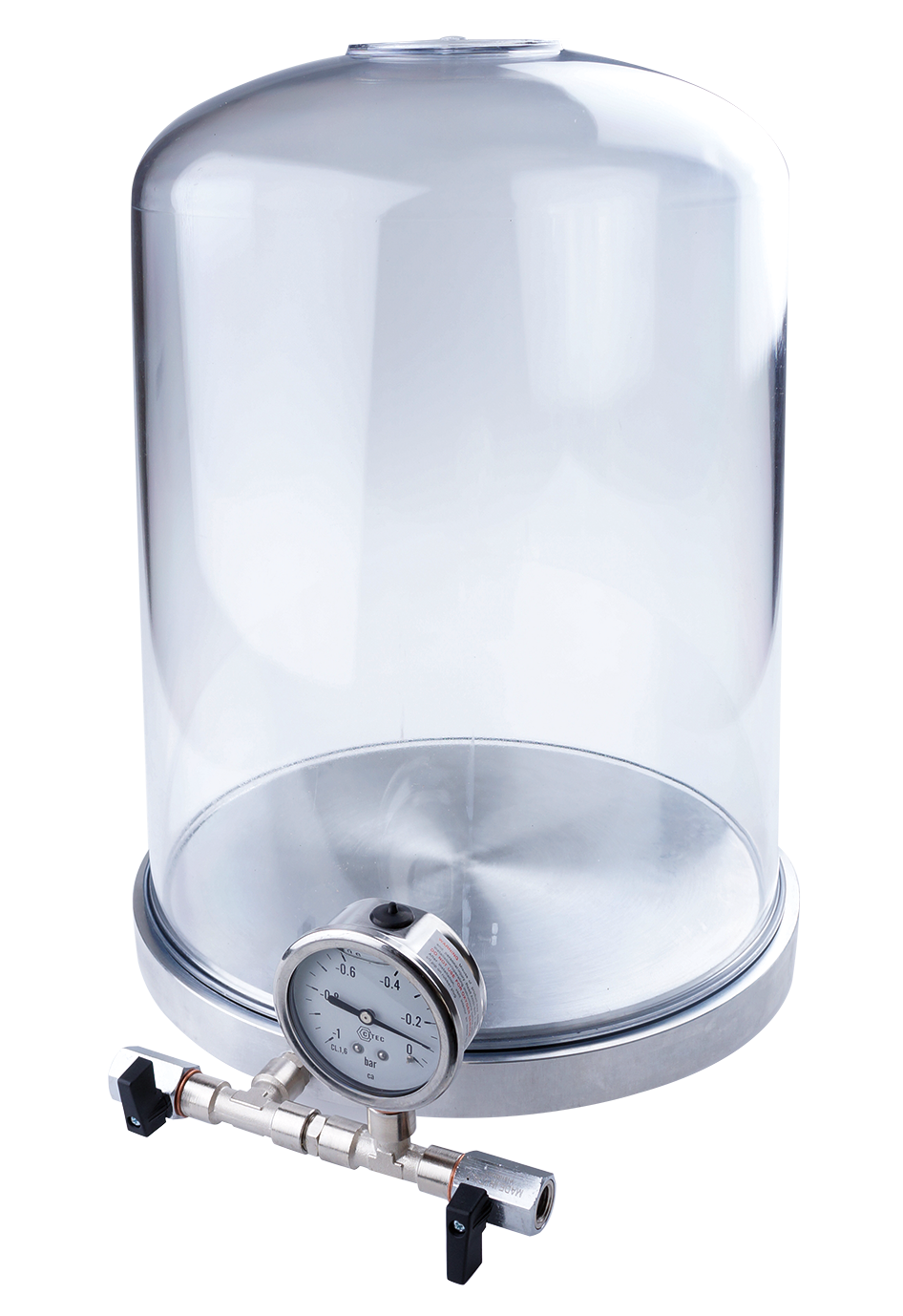

CO-XE-620006

17L

Perfect for resin
degassing before
infusion

 Room
Temp.		 Diameter 290 x H 380

1/4″ vacuum connector



Included :

  • 1 vacuometer
  • 1 isolation valve
  • 1 unloading valve

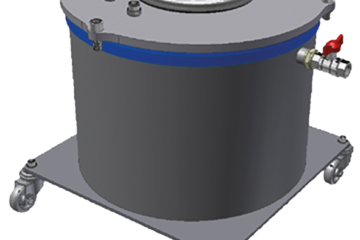

CO-XE-0218-02

30L and 50L

Base mounted
on wheels

 100°C 1 GEKA vacuum connector

5 x 10 mm resin inlet connectors



  • Clear lid

CO-XE-618537

78L

Available with
see-through lid

 100°C ID diam 500 x 400



Included :

  • 1 vacuometer
  • 1 isolation valve
  • 1 unloading valve
