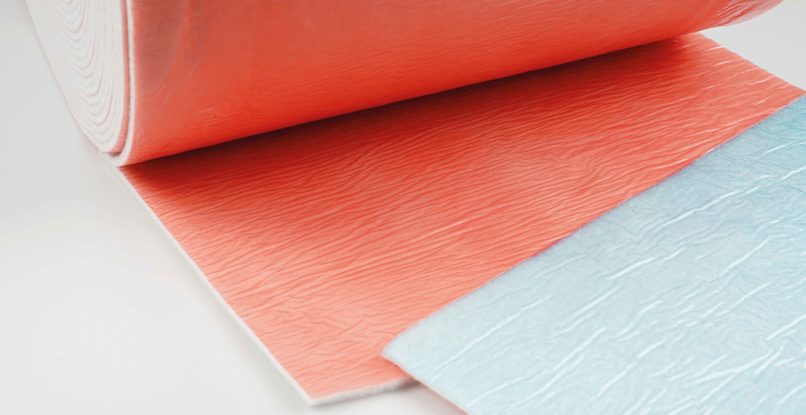

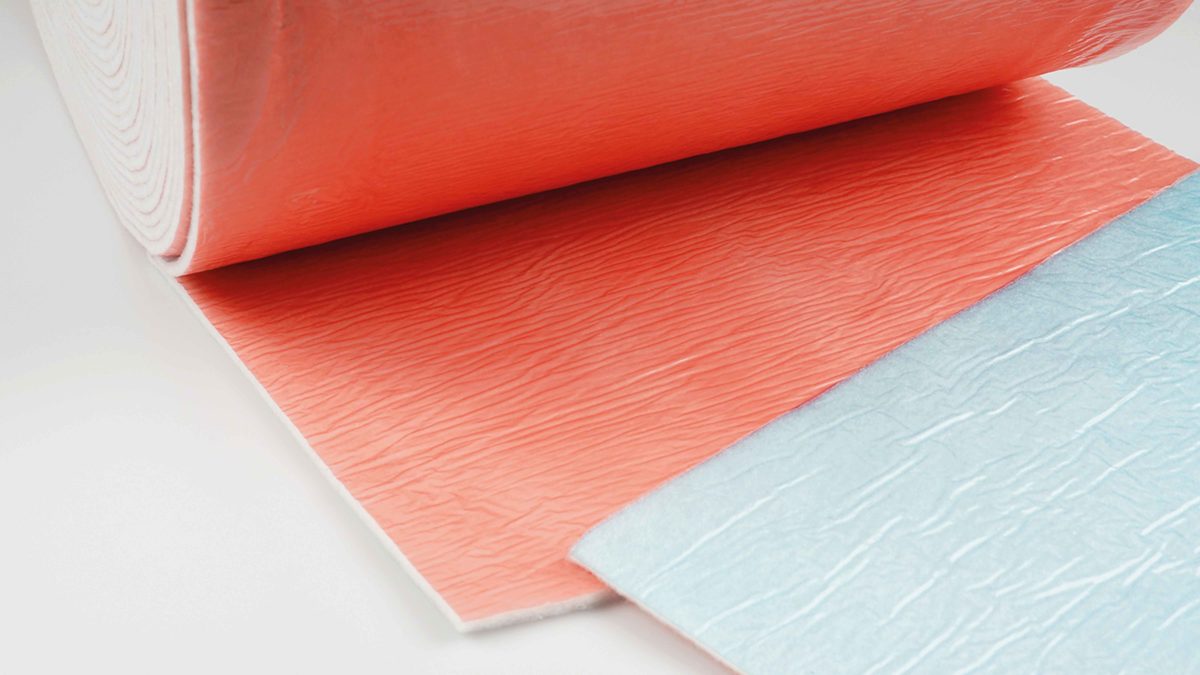

VACUOLEASE® three-layer system

Three-layer system for vacuum moulding

Patented 3-layer complex designed for vacuum moulding technology.

Perforated films and breathers/bleeders are combined into a single product to facilitate the moulding process.

It is applied in direct contact with the resin, on the blue side. The non-perforated film protects the silicone tools from resin bleeding.

VACUUM MOULDING
APPLICATIONS
ETFE P3 / PES340 / ETFE NP
410 g/m²
Blue / White / Red
1. PERFORATED FILM
ETFE P3 (blue)
ETFE NP (red)
2. BREATHER / BLEEDER
PES340
340 g/m²
White
Max. Temperature
205 °C

Other configurations upon request.

PROCESS
Autoclave

Documentation

Range of bagging materials for prepregs and hand lay-up composite with vacuum polymerization (271 ko)

Download
