VACUOPLEX MP®

Microporous vacuum moulding complex

Designed and developed by DIATEX, VACUOPLEX MP® is a real concentrate of technologies. It brings together the know-how of weaving, DIATEX textile finishing and the transformation of composite materials.

Microporous multilayer system used in manufacturing processes for vacuum moulding of composite materials with techniques such as prepreg, wet lay-up.

It is a VACUOPLEX™ evolution, it gives many benefits to the producers : save time and improve the composites quality. Under vacuum the resin can’t pass through the film excepted gases. Thanks to the non woven bleeder, the vacuum acts uniformly on the entire area during all the curing process, and the resin can’t stop it as it is blocked under the microporous film.

  • Multilayer
  • 3 in 1
  • Microporous
  • Eco-design
FOR VACUUM
MANUFACTURING
FOR PREPREGS

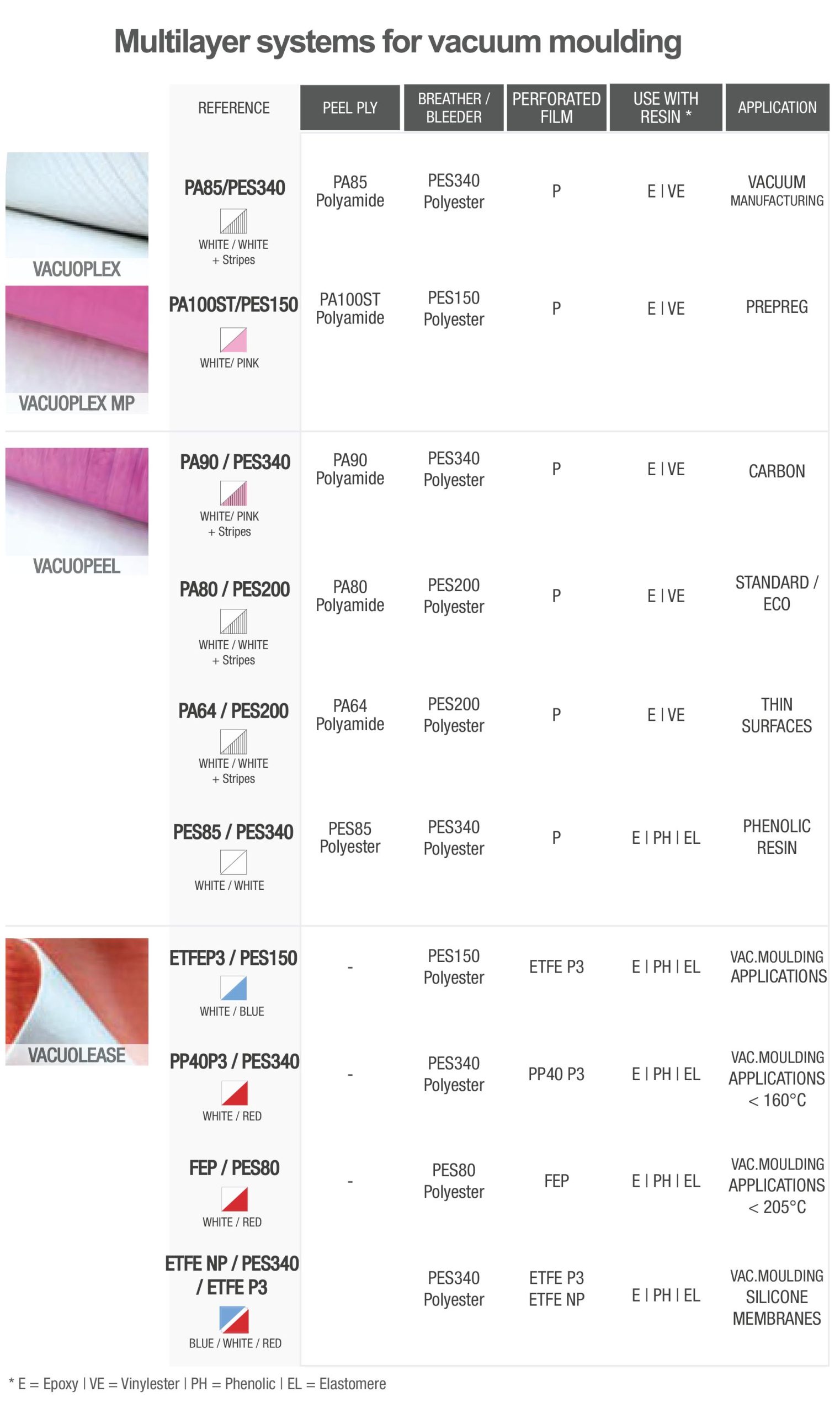

VACUOPLEX
470 g/m²

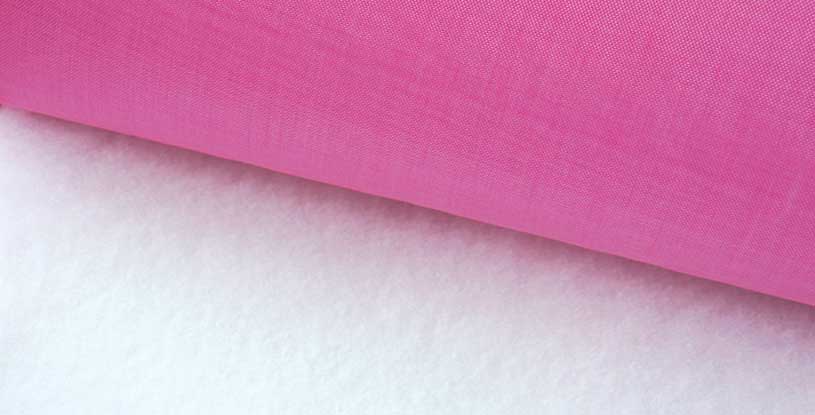

VACUOPLEX MP
284 g/m²
1. PEEL PLY
PA85
85 g/m²
Polyamide white + stripes
PA100ST
107 g/m²
Polyamide pink no stripes
2. PERFORATED FILM
YES MICROPOROUS
3. BREATHER / BLEEDER
PES340
340 g/m²
White
PES150
150 g/m²
White



Width Lenght Thickness
1.50 m 50 m +/- 6 mm
PROCESS
Oven
Autoclave

Documentation

Range of bagging materials for prepregs and hand lay-up composite with vacuum polymerization (271 ko)

Download
