Polyamide bagging films | Diatex Composite

"Polyamide" films

Discover our products

Be recalled

Used in high temperature applications, polyamide films offer excellent mechanical strength and are compatible with autoclave processes.

	Temp.	Vaccum Elongation	Auto- release	Use with resin*	Oven	Autoclave	Infusion
PA205	205 °C	Low	YES	E \| P \| VE \| EL	•	•	•
PA205 TUBE	205 °C	Low	YES	E \| P \| VE \| EL	•	•	•
PA205MAX	205 °C	Low	YES	E \| PH	•	•	•
PA205MAX TUBE	205 °C	Low	YES	E \| PH	•	•	•
PA205 HF	205 °C	Low	YES	E \| P \| VE \| EL	•	•
PA232	232 °C	Low	YES	E \| P \| VE \| EL	•	•	•

*E=Epoxy | P=Polyester | VE=Vinylester | PH=Phenolic | EL=Elastomere | TP=Thermoplastic

PA205

High temperature bagging film

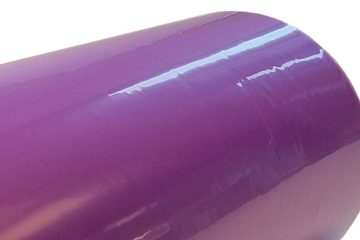

PA205 TUBE

High temperature lay-flat tube bagging film

PA232

Very high temperature bagging film

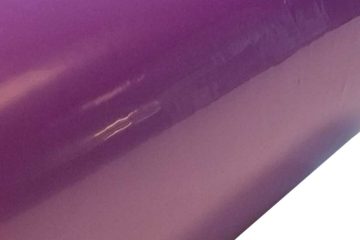

PA205 MAX

High temperature bagging film

Polyamide vacuum bagging fifilm

PA205 MAX TUBE

High temperature bagging film

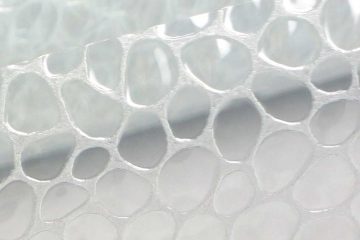

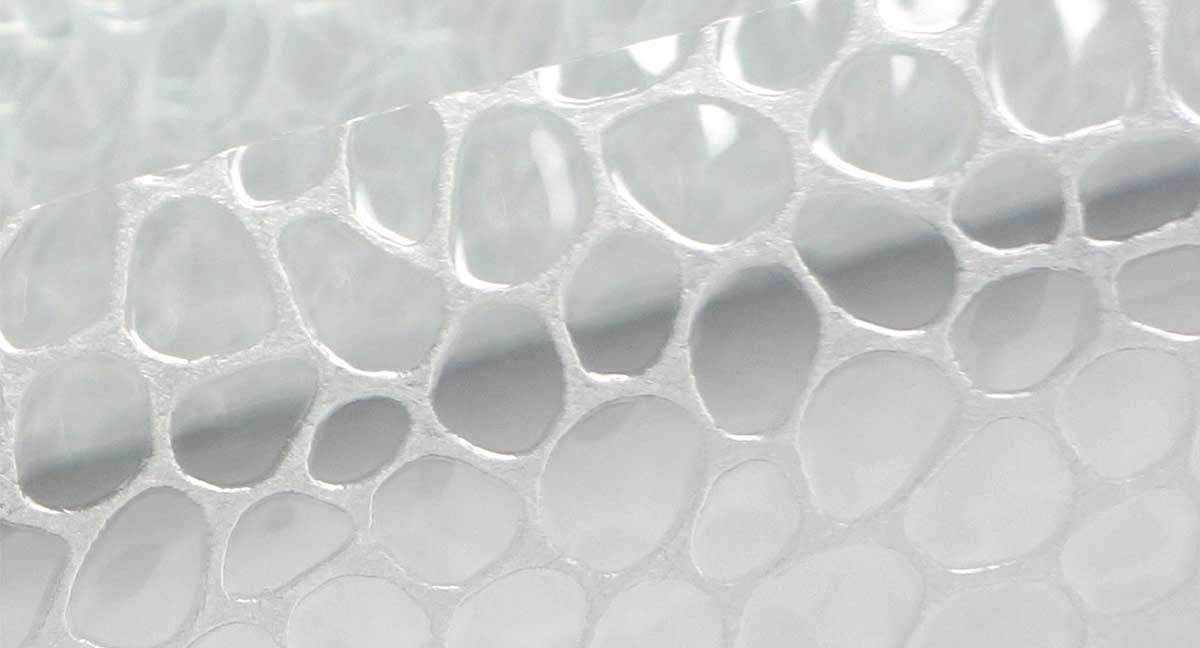

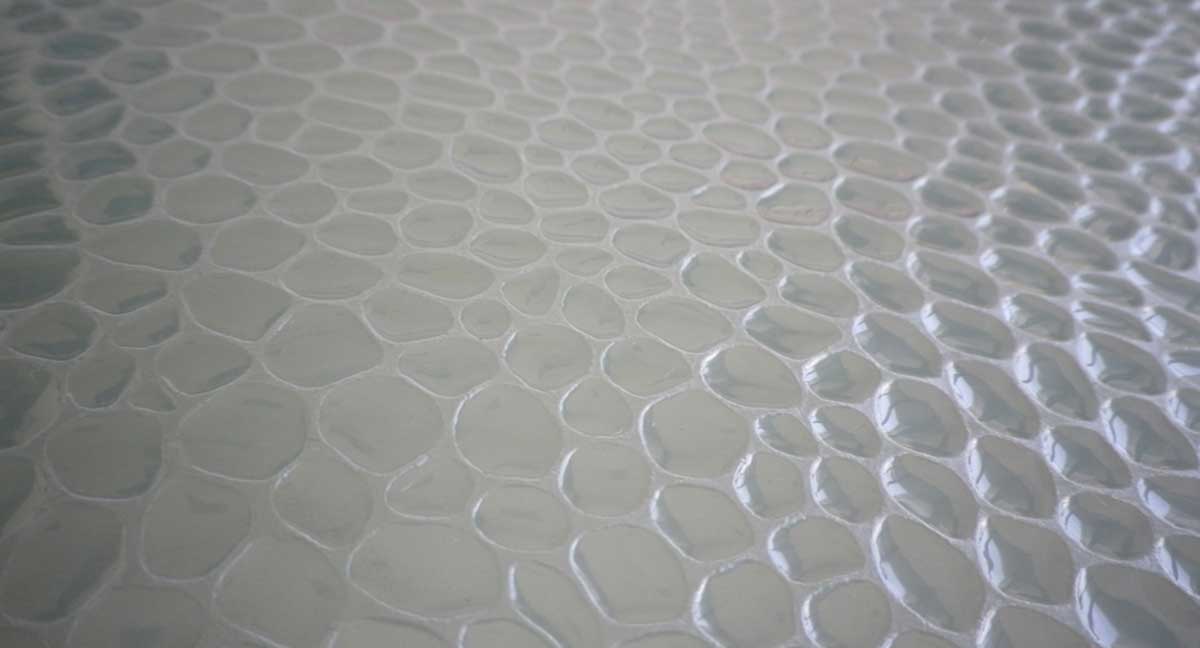

PA205 HF

Embossed nylon bagging film
