As part of the Ecophyto 2 plan, which aims to reduce the use of pesticides by 50% by 2025, DIATEX is actively involved in creating new integrated methods of preventing crop pests using insect-proof nets (insect nets).

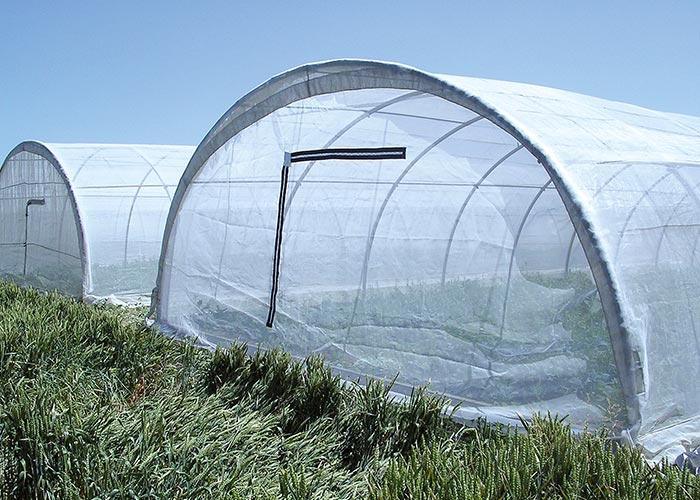

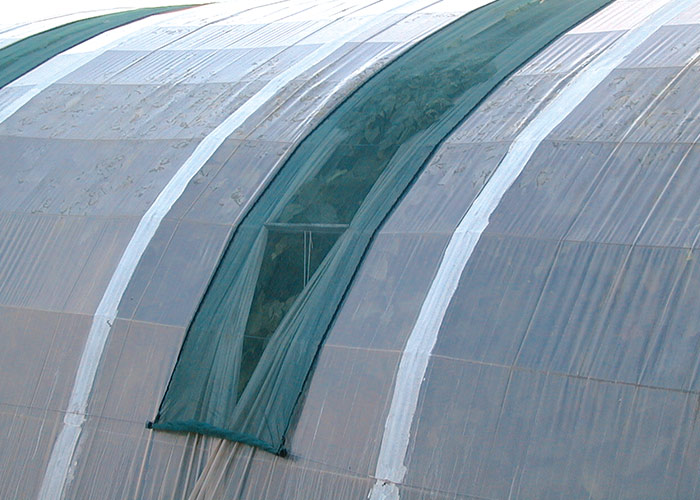

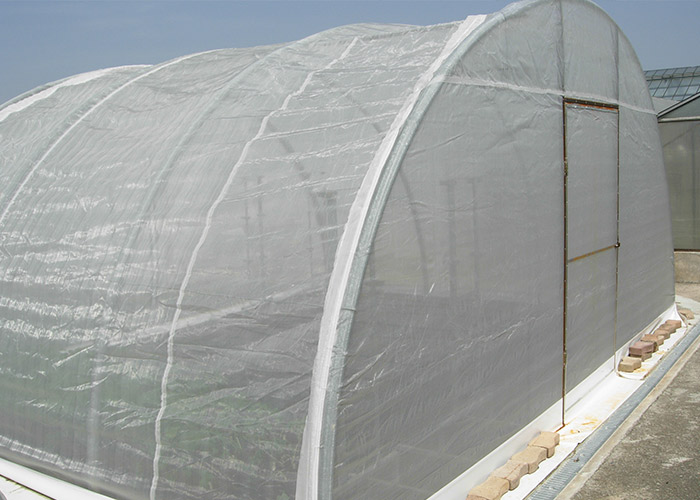

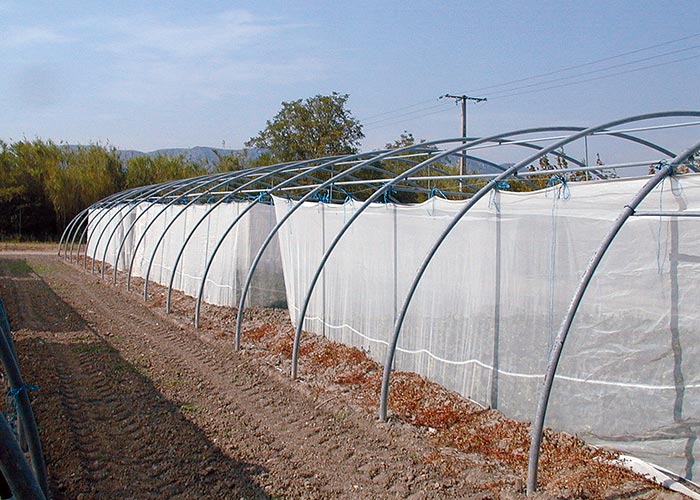

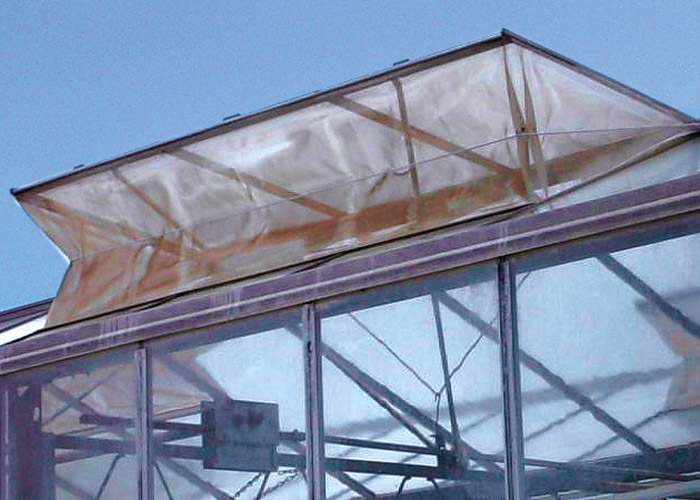

Aimed at isolating crops or creating micro-parcels, our nets prevent the pollination of plants by anemophily (wind) and entomophily (insect). They create a physical barrier against insects: flies, aphids, thrips and whitefly depending on the mesh size selected.
| Ref | Cat. | Mesh opening |
Material /Color |
Width | Lenght | Weight | Permeability to air* |
| F1032 | B | 3000 x 2000 µ | PEHD / Cristal |
4 m | 75 m | 100 g/m² | >15000 l/m²/s |
| 1 | 1.5 | 2 | 3 | 4 | 6 m | 100 m | ||||||
| 3 | 4 m | 125 m | ||||||
| 3 | 4 m | 150 m | ||||||
| PE22/15.28 | H/B | 1400 x 900 µ | 4 m | 50 ** m | 96 g/m² | >15000 l/m²/s | |
| 1.5 | 2 | 2.5 | 3 | 4 m | 100 m | ||||||
| 4 m | 125 ** m | ||||||
| 4 m | 150 ** m | ||||||
| 2.5 m | 250 m | ||||||
| PE30/24.22 | F | 950 x 800 µ | 2.1 | 2.5 | 3.2 | 4.3 | 6.4 m | 100 m | 70 g/m² | 14300 l/m²/s | |
| 8.6 m | 125 m | ||||||
| 1.5 m | 150 m | ||||||
| 1.5 | 2.1 | 3.2 m | 300 m | ||||||
| 1.5 | 2.1** m | 500 m | ||||||

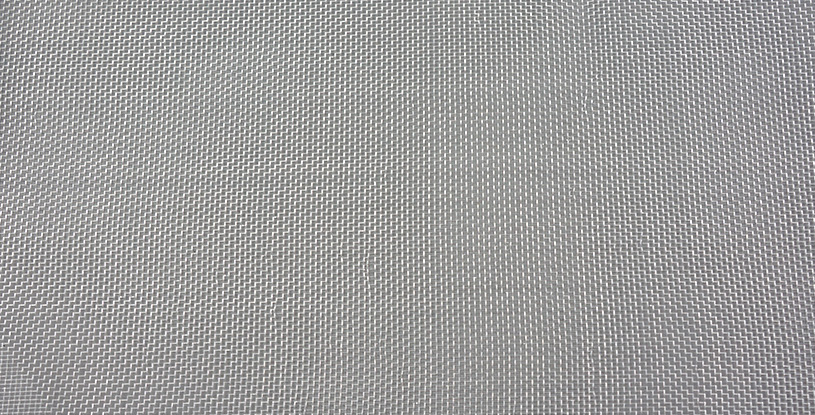

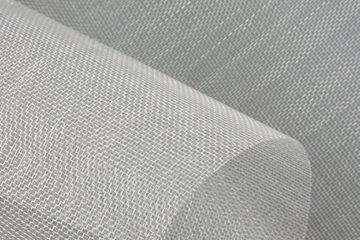

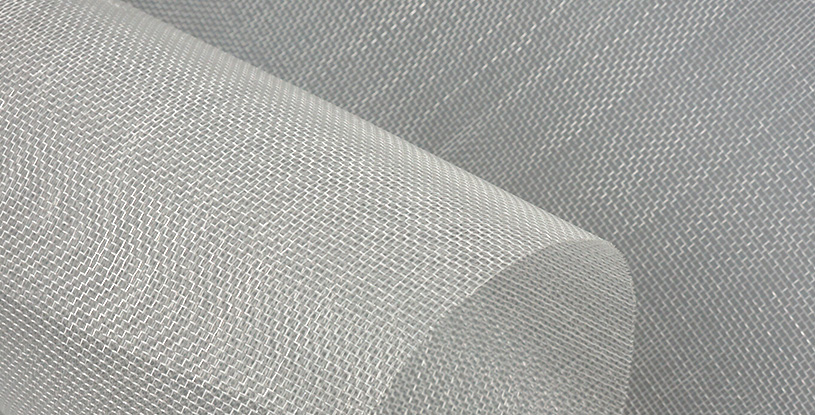

| PE22.30 | F/A | 920 x 920 µ | 1.6 | 2 m | 25 m | 110 g/m² | 13300 l/m²/s | |
| 1.6 | 2 m | 100 m | ||||||
| 2.7 | 3.2 m | 115m | ||||||
| 1.6 | 2 m | 300 m | ||||||
| PE43/27.23 | W | 800 x 300 µ | 2 | 3 | 4 m | 100m | 110 g/m² | 13200 l/m²/s | |
| PE54/27.22 | W (SW) | 800 x 250 µ | 1 | 1.5 | 2 | 2.5 | 3 | 4 | 5 m | 100 m | 125 g/m² | 10900 l/m²/s | |
| PE38/32.24 | A | 600 x 500 µ | 1.5 | 2 | 2.5 | 3 | 4 m | 100 m | 120 g/m² | 11350 l/m²/s | |
| PE60.15 | T | 300 x 300 µ | 1.5 | 2 | 3 m | 150 m | 100 g/m² | 8450 l/m²/s |
* At 200 Pa
Categories : HB : Honeybee – B : Bumblebee – F : Fly – W : Whitefly – SW : Silverleaf Whitefly – A : Aphids – T : Thrips
Comments : Mesh opening : This refers to the inner dimensions of the opening, i.e. the inner side of the square.
Please note : 1 µ = 0,001 mm

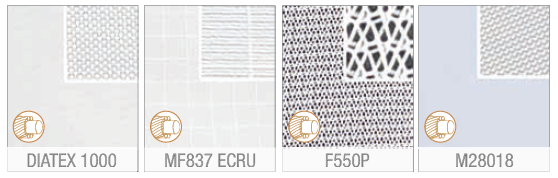

| MULTIFILAMENT FABRICS | |||||||
 |
|||||||
| Ref | Cat. | Mesh opening |
Material /Color |
Width | Length | Weight | Permeability to air* |
| DIATEX 1000 | PL | 100 x 40 µ | PES /White |
1.5 m | Custom-made | 50 g/m² | 605 l/m²/s |
| MF837 ECRU | PL | 50 x 70 µ | PES /Ecru |
1.7 m | 65 g/m² | 100 l/m²/s | |
| F550-PES125 | PL | 400 x 700 µ | PES /Ecru |
1.25 | 1.5 | 2.5 m | 50 g/m² | >15000 l/m²/s | |
| M28018 | PL | On request | PES /Ecru |
1.6 m | 105 g/m² | 600 l/m²/s | |
*At 200 Pa
