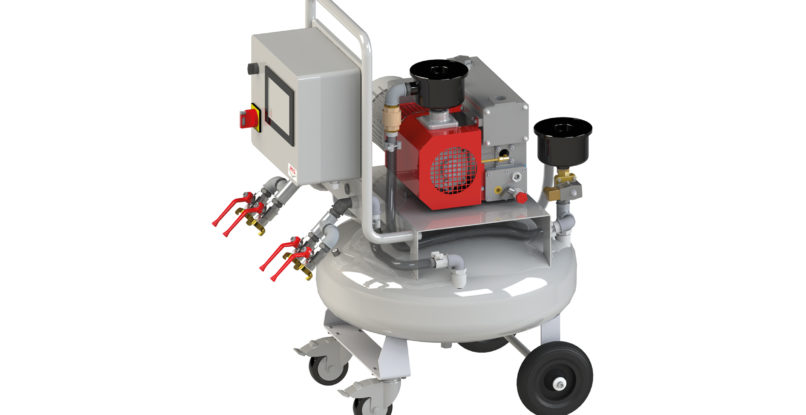

COMPOSITVAC
2 vacuum levels systems
These vacuum plants delivered 2 different vacuum levels with only one vacuum pump :
- One vacuum for close the mould
- One vacuum to assist the injection
The vacuum tank allows a better optimisation of the vacuum level and an economy of the vacuum pump. The 2 vacuum levels are adjustable in function of the resin systems used and the applications. The vacuum plants COMPOSITVAC are designed to be used with most of the RTM machines.
| Nominal
capacity m3-h | 50 Hz |
Power Pump
kW | 50Hz |
Receiver
Capacity |
Weight
(Kg) |
|
| COMPOSITVAC MOBILE E25 | 30 | 0.75 | 70 L | 120 |
| COMPOSITVAC MOBILE E40 | 47 | 1.10 | 250 L | 245 |
| COMPOSITVAC MOBILE E65 | 65 | 1.50 | 265 | |
| COMPOSITVAC FIXE E65 | 65 | 1.50 | 500 + 80 L | 260 |
| COMPOSITVAC FIXE E100 | 96 | 2.20 | 280 |
- CAN BE USED WITH
- Oven
- RTM Mould
- Vacuum infusion
