With its expertise in weaving, fabric treatment and filtration, DIATEX produces technical fabrics in its weaving plant located in the Drôme.
Our position as a manufacturer allows us to master the different technical characteristics sought in these fabrics, namely water-repellent, dirt-repellent, washable, filtering, waterproof, antistatic, antibacterial, etc...
During the manufacturing process we obviously integrate the notions of efficiency, economy and sustainability. Thus all our fabrics are washable and reusable.
We thus participate in the ecological approach in opposition to the single-use object.
Release interfaces
Discover our products
Catalog
DIATEX provides a range of PTFE & Silicone release interfaces used in vacuum moulding and vacuum infusion processes.
Porous or non porous PTFE coated glass fabrics, adhesive (silicone and acrylilc) or non adhesive, bands or full width, special PTFE products (seal, bands, treatment…) as well as PTFE coated woven fiberglass fabric release interfaces.
DIATEX also offers siliconed papers as very economical and environmentally friendly release interfaces.

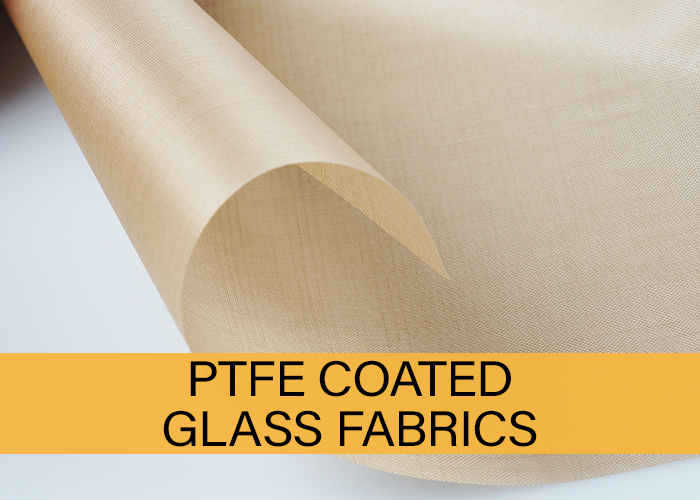

PTFE coated glass fabrics
| Max. Temp. | ADHESIVE
Version |
Porosity | Coating | Finishing / Final look | ||||
| PTFE | Glossy | Matte | Smooth texture | |||||
|
PTFE coated glass fabrics |
V7PT80 140 g/m² |
260°C | ● | – | 67% | ● | ||
| V7PT125 250 g/m² |
260°C | ● | – | 65% | ● | |||
| V7PT140 290 g/m² |
260°C | ● | – | 59% | ● | |||
| V7PT250 490 g/m² |
260°C | ● | – | 59% | ● | |||
| V4PT76.3 65 g/m² |
260°C | – | 20-40 | 20% | ● | |||
| VEPTFE180 130g/m² |
260°C | ● | – | 100% | ● | |||

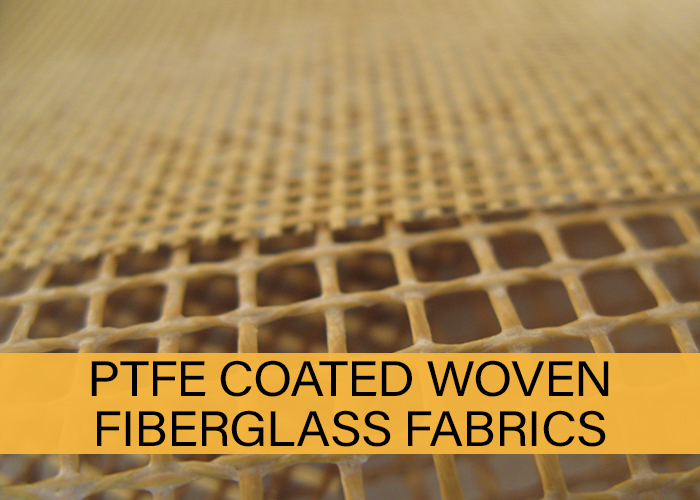

PTFE-coated woven fiberglass fabrics
| Max. Temp. | Porosity | Coating | Finishing / Final look | ||
| PTFE | Grid | ||||
| PTFE-coated woven fiberglass fabric | G1X1 PTFE 520 g/m² |
260°C | 1X1 mm open mesh |
65% | ● |
| G4X4 PTFE 345 g/m² |
260°C | 4X4 mm open mesh |
65% | ● | |
Siliconed papers
| Max. Temp. |
Adhesive version |
Porosity | Coating | Finishing / Final look | |||||
| Silicone | Brillant | Matte | Twill | Rainbow | |||||
| Siliconed
paper |
PS1F75 90 g/m² |
240°C | – | – | 1 face | ● | |||
| PS2F85 92 g/m² |
240°C | – | – | 2 faces | ● | ||||
| PS1F204/ MATTE 176 g/m² |
220°C | – | – | 1 face | ● | ||||
| PS1F210/ RAINBOW 176 g/m² |
220°C | – | – | 1 face | ● | ||||
| PS1F265/ TWILL 203g/m² |
220°C | – | – | 1 face | ● | ||||
