Vacuum infusion multilayer systems
INFUPLEX® are multilayer systems used in manufacturing processes for vacuum infusion of composite materials.
The systems combine two vacuum consumables into a two-layer unit (a performed film and a net bleeder on top).
There are several INFUPLEX® versions with different infusion medias.
INFUPLEX® is also a very simple solution to lay up the bagging materials.
INFUPLEX® QUADRILLE facilitates the installation of vacuum resin ramps.
| Ref. | Max. Temp. | Net bleeder | Perforated film |
Use with resins* |
Resin flow speed** | Global weight |
| INFUPLEX ISONET | 90 °C | ISONET 115 g/m² |
ELA20 P1 | E / VE / Polyester | ● | 146 g/m² |

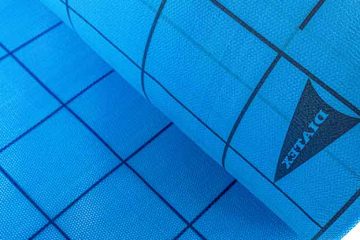

| INFUPLEX ISONET QUADRILLE | 90 °C | ISONET 115 g/m² |
ELA20 P1 | E / VE / Polyester | ● | 146 g/m² |
| INFUPLEX OM70 | 90 °C | OM70 180 g/m² |
ELA20 P0 | E / VE / Polyester | ●● | 200 g/m² |

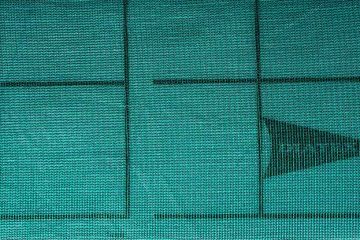

| INFUPLEX OM70 QUADRILLE | 90 °C | OM70 180 g/m² |
ELA20 P0 | E / VE / Polyester | ●● | 200 g/m² |
| INFUPLEX DIANET 135 | 90 °C | DIANET 135 135 g/m² |
ELA20 P0 | E / VE / Polyester | ●●● | 159 g/m² |

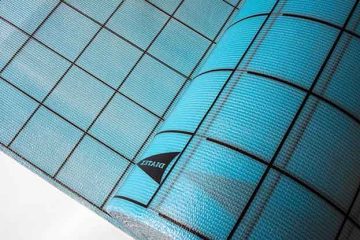

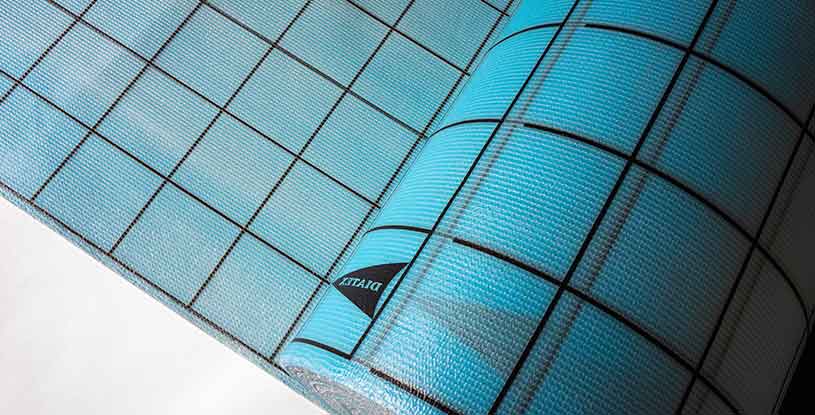

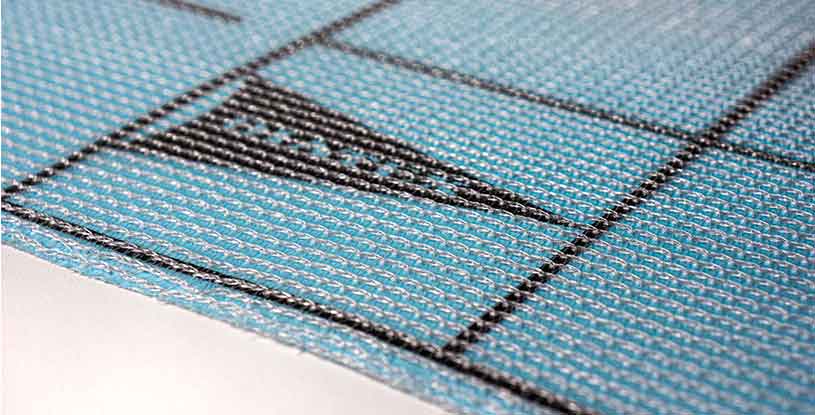

| INFUPLEX DIANET 135 QUADRILLE | 90 °C | DIANET 135 135 g/m² |
ELA20 P0 | E / VE / Polyester | ●●● | 159 g/m² |
| INFUPLEX FLONET | 90 °C | FLONET 112 g/m² |
ELA20 P0 | E / VE / Polyester | ●●●● | 132 g/m² |
| INFUPLEX FASTNET | 90 °C | FASTNET 180 g/m² |
ELA20 PO | E | VE | Polyester Filled resins |
●●●●● | 205 g/m² |

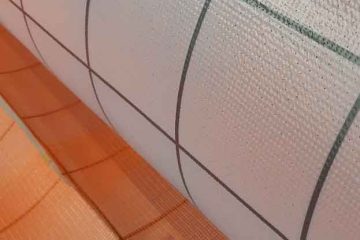

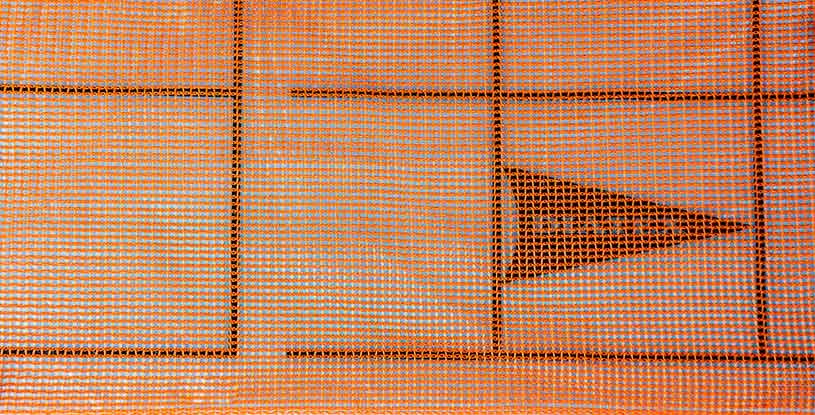

| INFUPLEX FASTNET QUADRILLE | 90 °C | FASTNET 180 g/m² |
ELA20 PO | E | VE | Polyester Filled resins |
●●●●● | 205 g/m² |
| INFUPLEX OM70 PA | 200 °C | OM70 PA 220 g/m² |
ETFE P1 | Epoxy HT | ●● | 255 g/m² |
| INFUPLEX DIANET PA | 200 °C | DIANET PA 125 g/m² |
ETFE P1 | Epoxy HT | ●●● | 160 g/m² |
*E = Epoxy | VE = Vinylester
**• = Slow | • • = Average | • • • = Speed | • • • • = High speed | • • • • • = Very high speed
