Ancilliaries for vacuum equipments

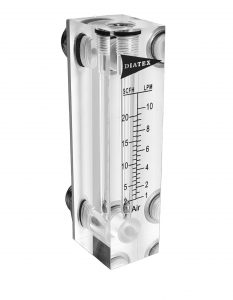

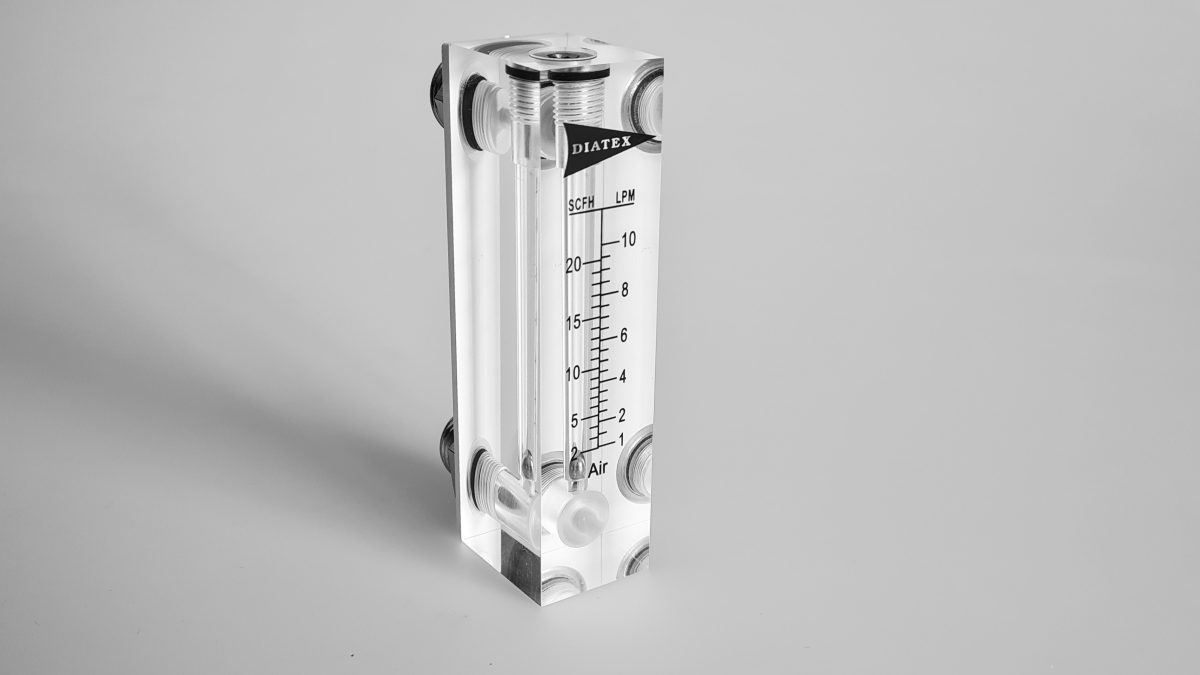

Leakage indicator
ACVAKTEST enables you to check the tightness of your assembly, whether for vacuum moulding or infusion.

By tracking the position of the ball in the device, you can rapidly check visually for leaks.

Ball position :

  • Low (0) = no leakage
  • In motion = small leakage
  • High= larger leakage
Body
mateial		 Scale
(L/min)		 Type of
fittings		 Dimensions
(mm)		 Max.
oper.
temp.
(°C)
PMMA 0 to 10 2 x female 1/4 BSPT 100*50*25 65

In addition : use elbow fittings for direct connection to a vacuum port.
ACADAPT-ELB-1/4M1/4F or ACADAPT-ELB-1/4M1/4M
Vacuometers
ACVACU100-1/2M

1/2 male
diam. 100 mm
Vacuometer
ACVACU63-1/4M
1/4 male
diam. 63 mm
Vacuometer
ACVACU63-1/4M-CUP

Vacuometer + suction cup
ACVACU76ELEC-1/2M

Digital vacuometer

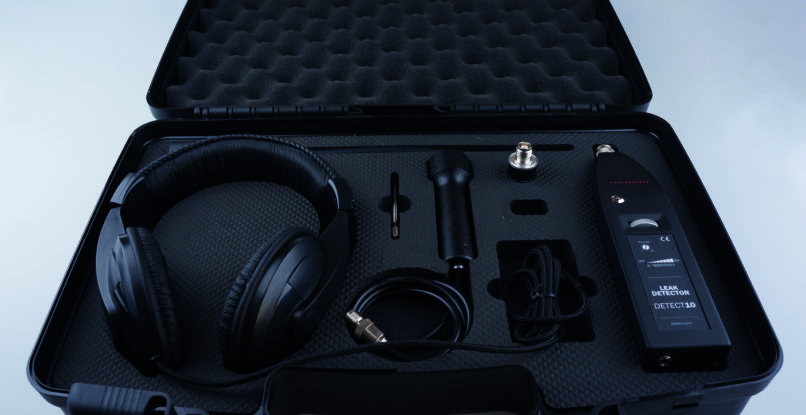

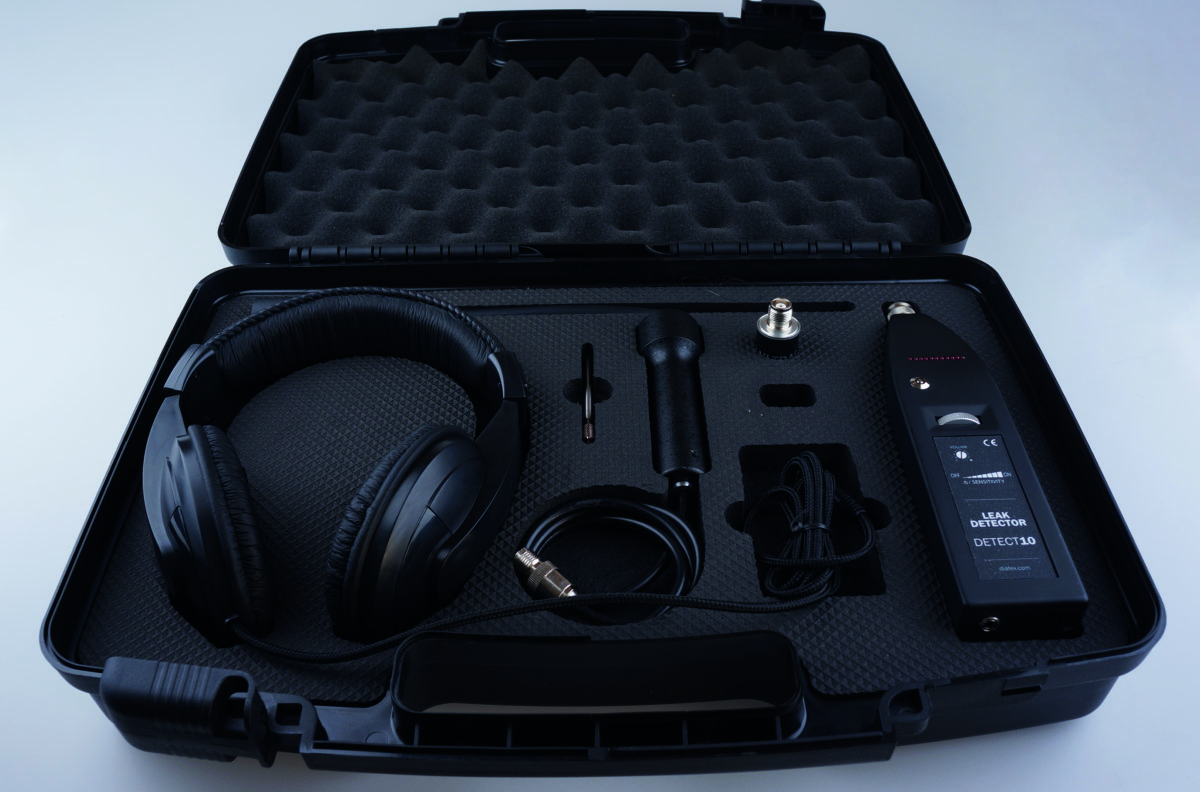

Leak detector

MADETECT10

Soft carrying case 215 x 50 x 40 mm.
Adjustable sensibility 50 dB Min. detectable sound pressure 1 nbar (in the 25-45 kHz range).
9V IEC 6LF22 Battery.
260g – without battery.



Electric cutter

MACUTTER/ELEC

Lightweight & ergonomical electric cutter, designed to reduce wrist and hard strain for cutting of light fabrics (<170g/m²).
Suitable with peet piles, separated films and bagging films, net bleeders, Infuplex and Vacuopeel.
Kit including rechargeable DC battery and charger.



Infrared thermometer
MATHERMO/IR3

Measures the temperature of RTM equipment and resin before the injection starts.
Digital laser °C and °F values.
