Flat resin or vacuum channel / Peel ply

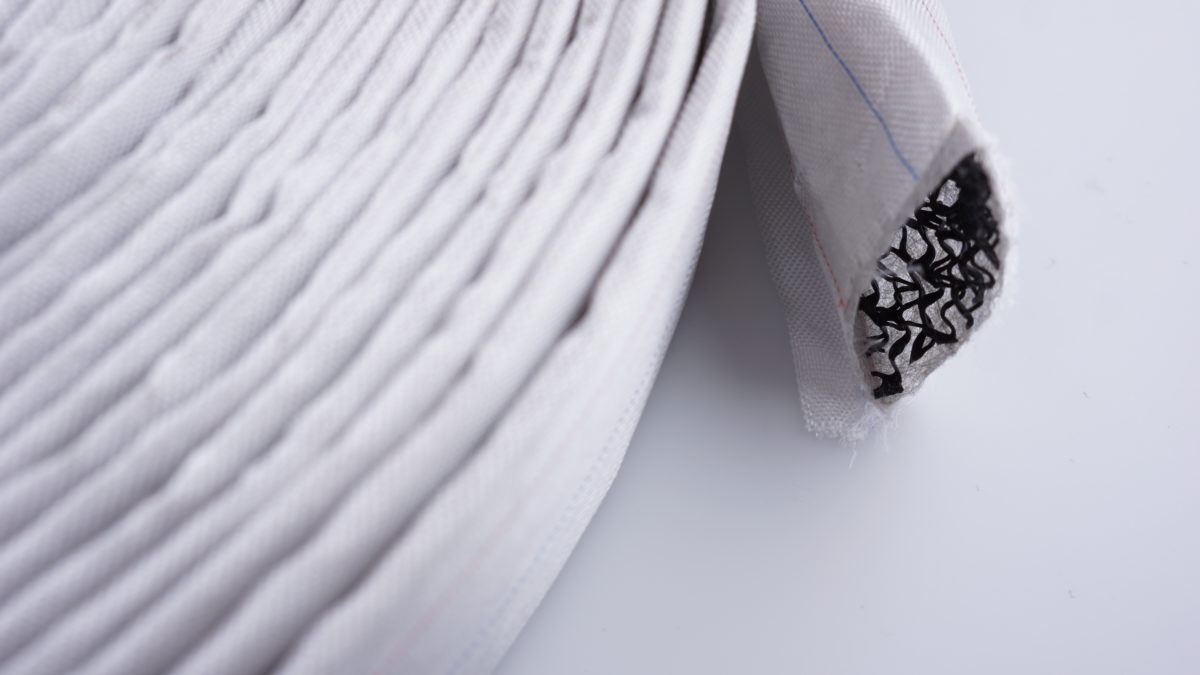

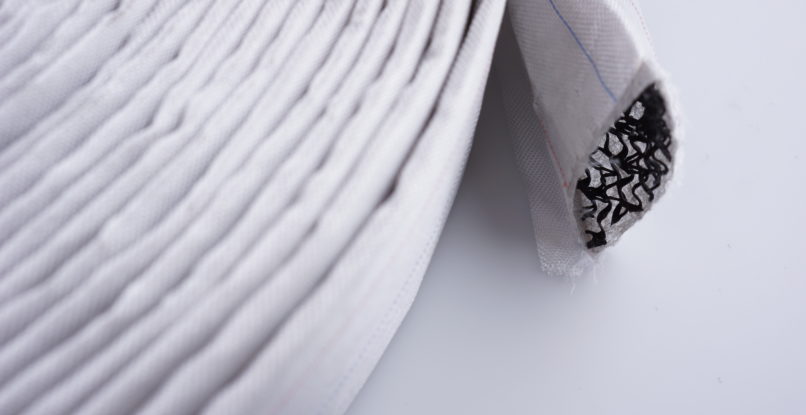

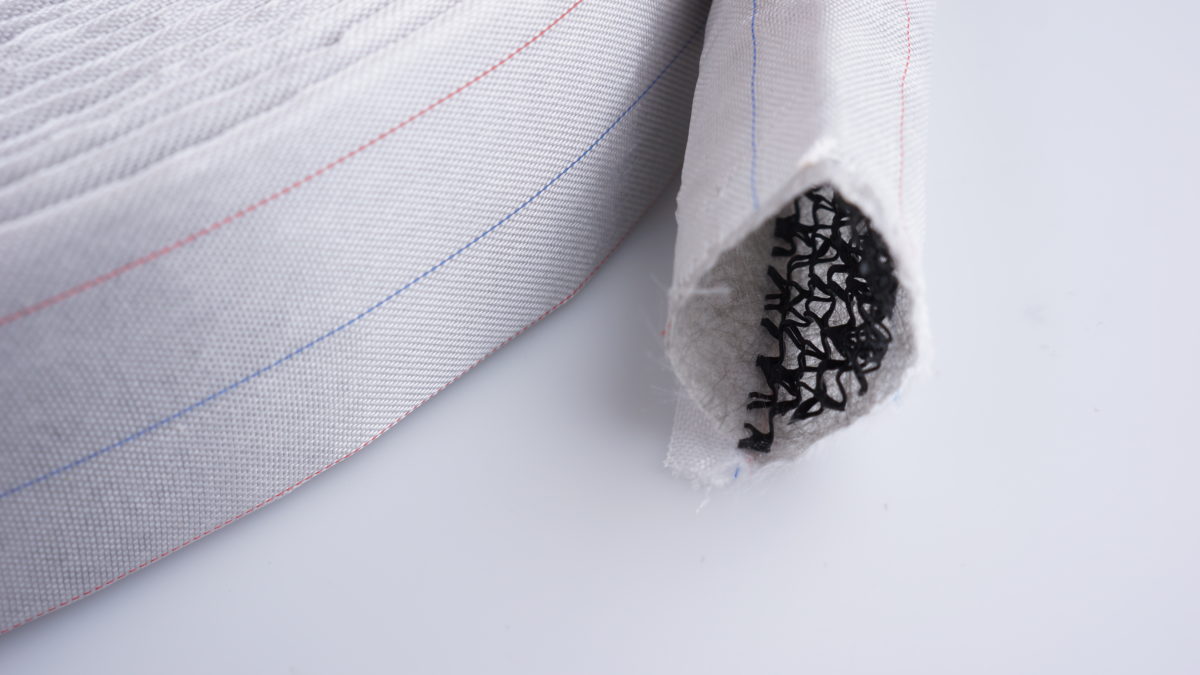

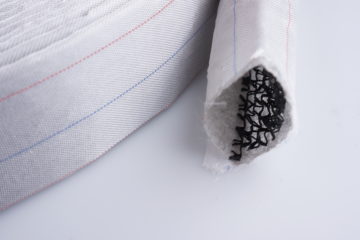

DIADRAIN / PA80 is a flat resin or vacuum channel to avoid marking parts manufactured by vacuum infusion : contrary to the pipes, it does not mark. It is made of a three-dimensional polyester filament core, wrapped in a non-woven polyester sheath, itself wrapped in a PA80 tear-off fabric sheath to facilitate removal.

  • Works as resin supply channel or vacuum channel in vacuum infusion process.
  • Flexible.
    Easy to cut to size.
Width Length Max. Temperature
50 mm Roll x 50ml 80°C
Vacuum Infusion
