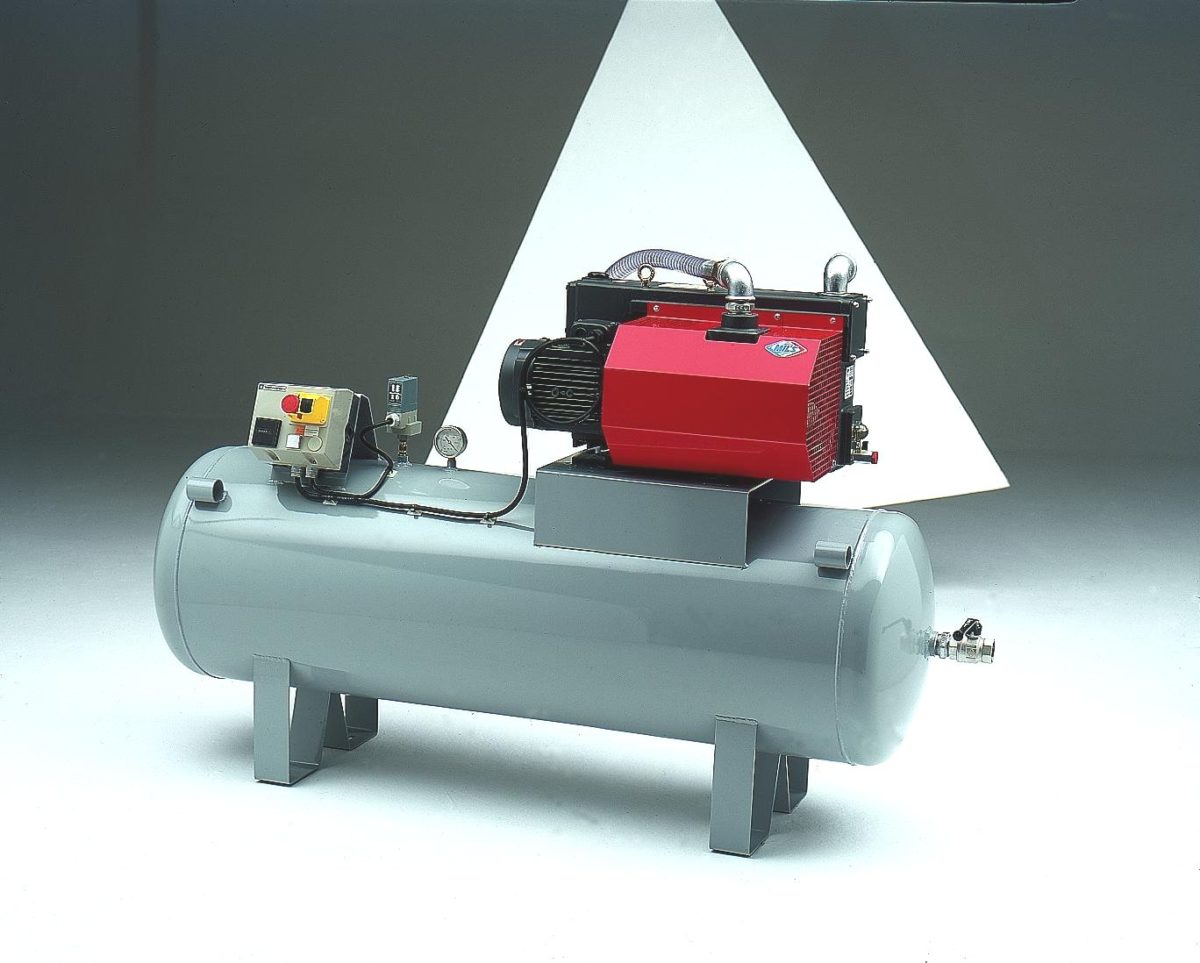

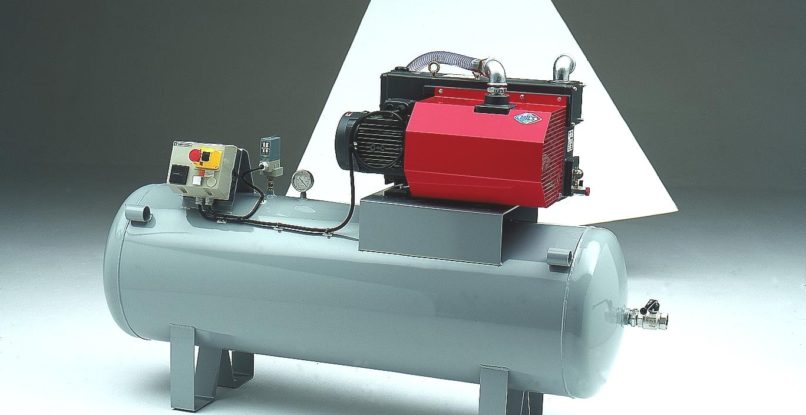

INDUSVAC
1 vacuum level systems
The vacuum tank allows a better optimisation of the vacuum level and an economy of the vacuum pump.
- Compact and independent vacuum plant
- Lubricated rotary vanes vacuum pump
- Regulation by mechanical vacuum switch
- Starting board and integrated hour meter
- Different available regulation modes
| Nominal
capacity m3-h | 50 Hz |
Power
Pump kW | 50Hz |
Receiver
capacity |
Weight
(Kg) |
|
| INDUSVAC 1 E25 | 30 | 0.75 | 500 L | 125 |
| INDUSVAC 1 E40 | 47 | 1.10 | 150 | |
| INDUSVAC 1 E65* | 65 | 1.50 | 185 | |
| INDUSVAC 1 E100* | 96 | 2.20 | 250 | |
| INDUSVAC 1 E150 | 150 | 3.00 | 260 | |
| INDUSVAC 1 E200* | 190 | 4.00 | 280 | |
| INDUSVAC 1 E300* | 288 | 5.50 | 370 |
*ATEX version available for explosible atmospheres regarding INERIS Certificate (standard temperature security)
