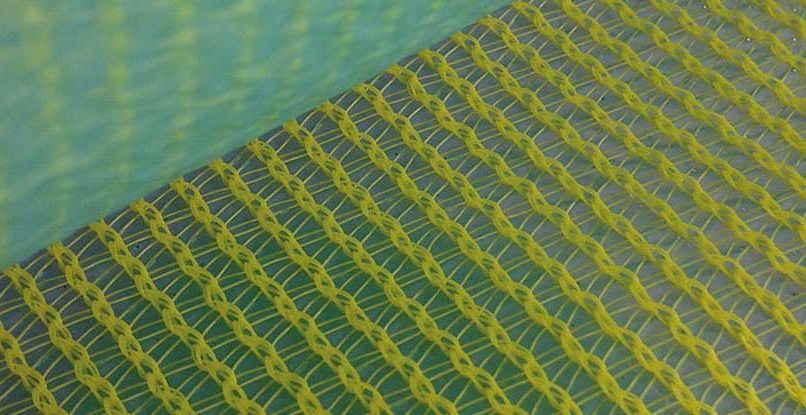

INFUPLEX FLONET

Vacuum infusion multilayer systems

INFUPLEX are multilayer systems used in manufacturing processes for vacuum infusion of composite materials.
The systems combine two vacuum consumables into a two-layer unit (a perforated film and a net bleeder on top).
There are 7 INFUPLEX® versions with 5 different net bleeders.
INFUPLEX is also a very simple solution to lay up the bagging materials.

  • Used in manufacturing processes for vacuum infusion of composite materials.
  • De-oiled. Heat set.
Global
weight
Max.
Temp
Net
bleeder
Perforated
film
Use with
resins*
Resin flow
speed **
132 g/m² 90°C FLONET

112gr/m2

ELA20 P0 E / VE / Polyester ••••

*E = Epoxy | VE = Vinylester
**• = Slow | • • = Average | • • • = Speed | • • • • = High speed
• • • • • = Very high speed

PROCESS
Vacuum infusion
