PA205 HF
Embossed nylon bagging film
Embossed polyamide & High Flow bagging film.
The structure allows a good resin or air flow. PA205HF is available in 2 designs : Rollers and Roots. PA205HF replaces both net bleeder and breather.

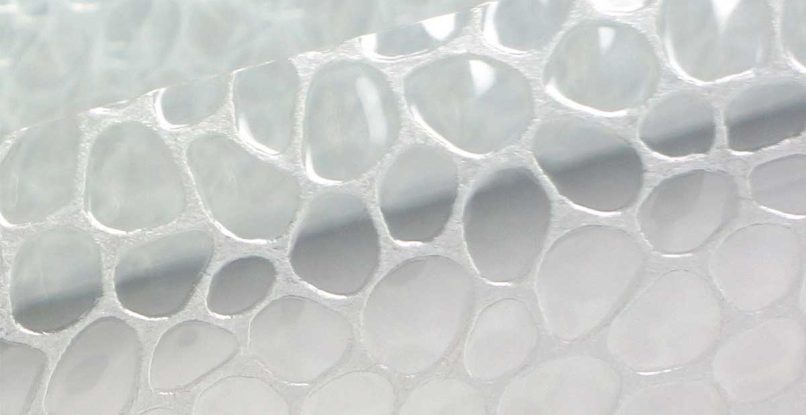

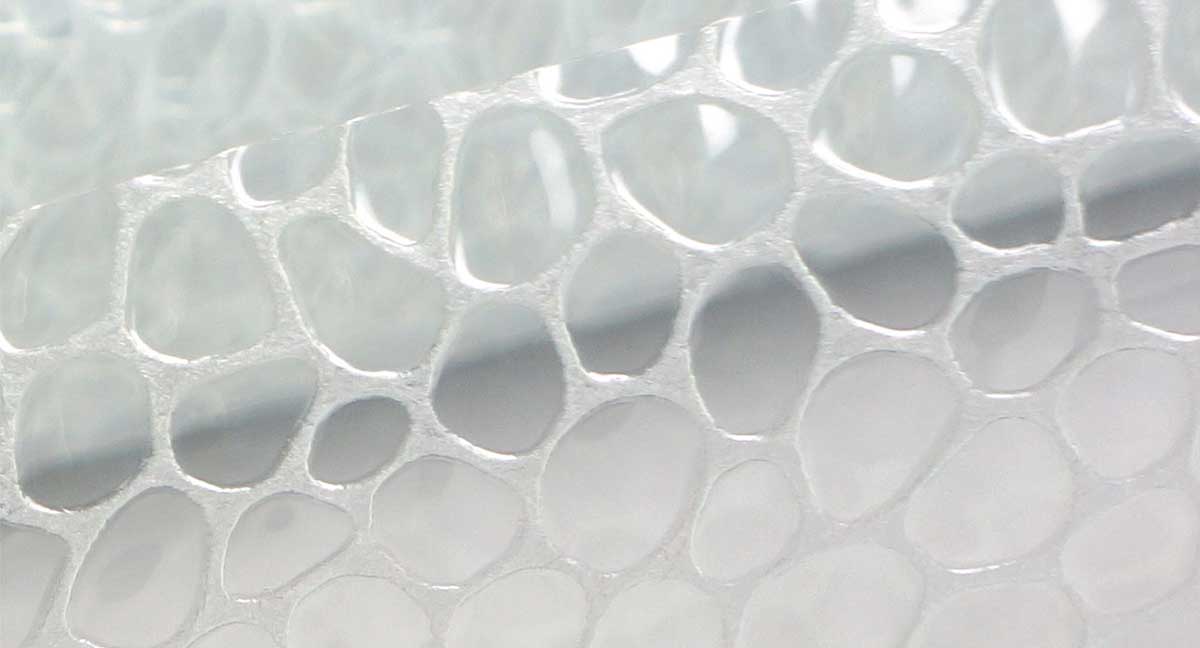

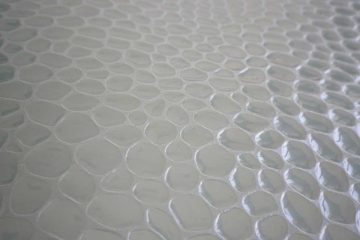

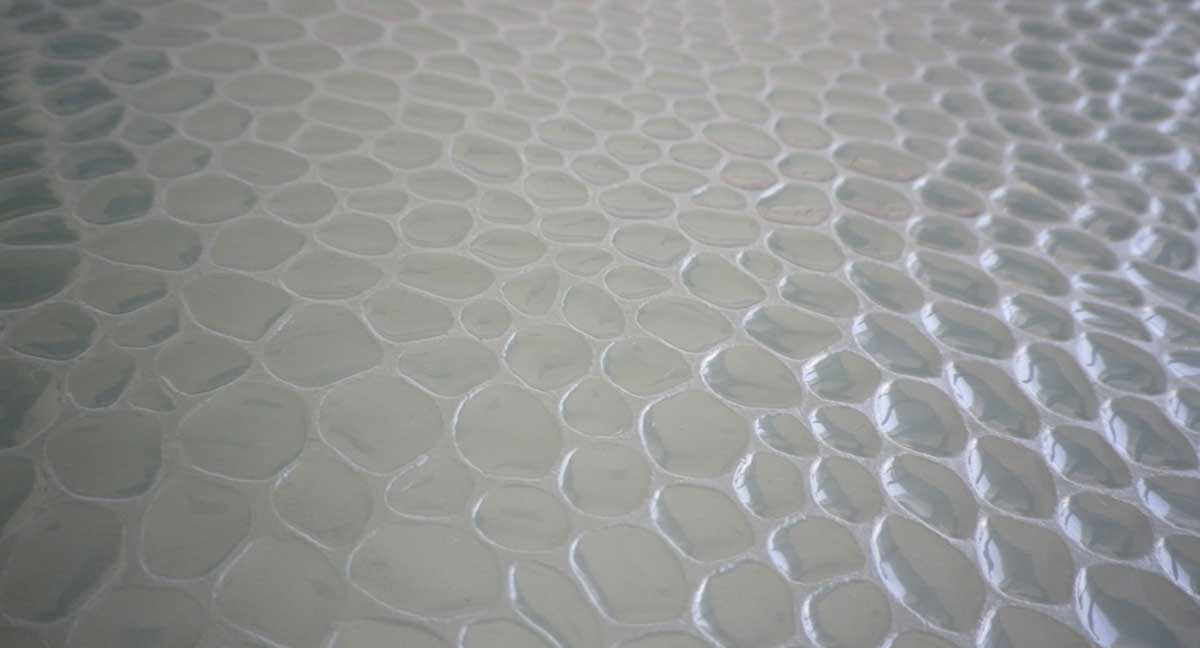

PA205 HF is a carved bagging film for the vacuum moulding of composite parts.
Its 3D structure provides a perfect vacuum compacting and allows to take out the bleeder for compaction or vacuum moulding combinated to our Microporous peel ply.
PA205 HF is a green bagging film as it enables using less peripheral device.
- Recommended for advanced composite manufactured under vacuum moulding.
- Excellent heat stability.
- Styrene resistant film.
Color : Transparent
| Width | Lenght | Thickness | Max Temp |
| 1.60 m | 125 m | 75 µ | 430 µ (rollers) | 350 µ (roots) | 205°C |
