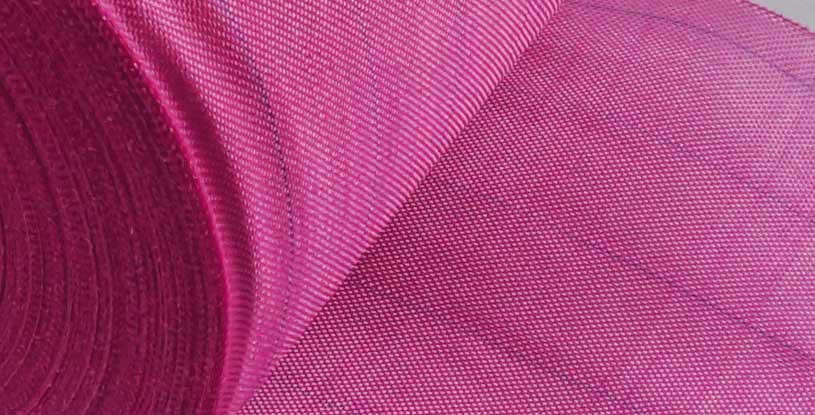

PA90 is a high tenacity technical peel ply made by DIATEX, it leaves a fine surface impression for priming and secondary bonding.
- Designed to be used on epoxy and polyester composite systems especially with the carbon fiber.
- Can be easily identified on the carbon laminate thanks to the pink colour / blue tracers. Heat-setted. Thermofixed.
Color: Pink + Blue stripes
Width | Lenght | Thickness | Max Temp | Weight |
1.56 m | 100 | 500 m | 160 µ | 200°C | 90 gr/m² |
- PROCESS
- Autoclave
- Vacuum Infusion
