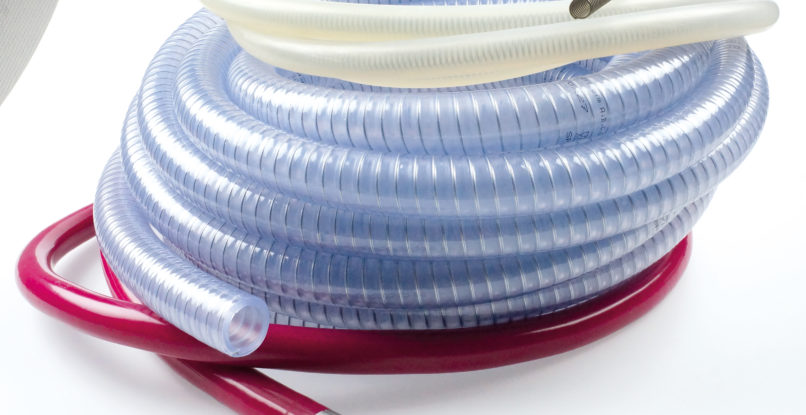

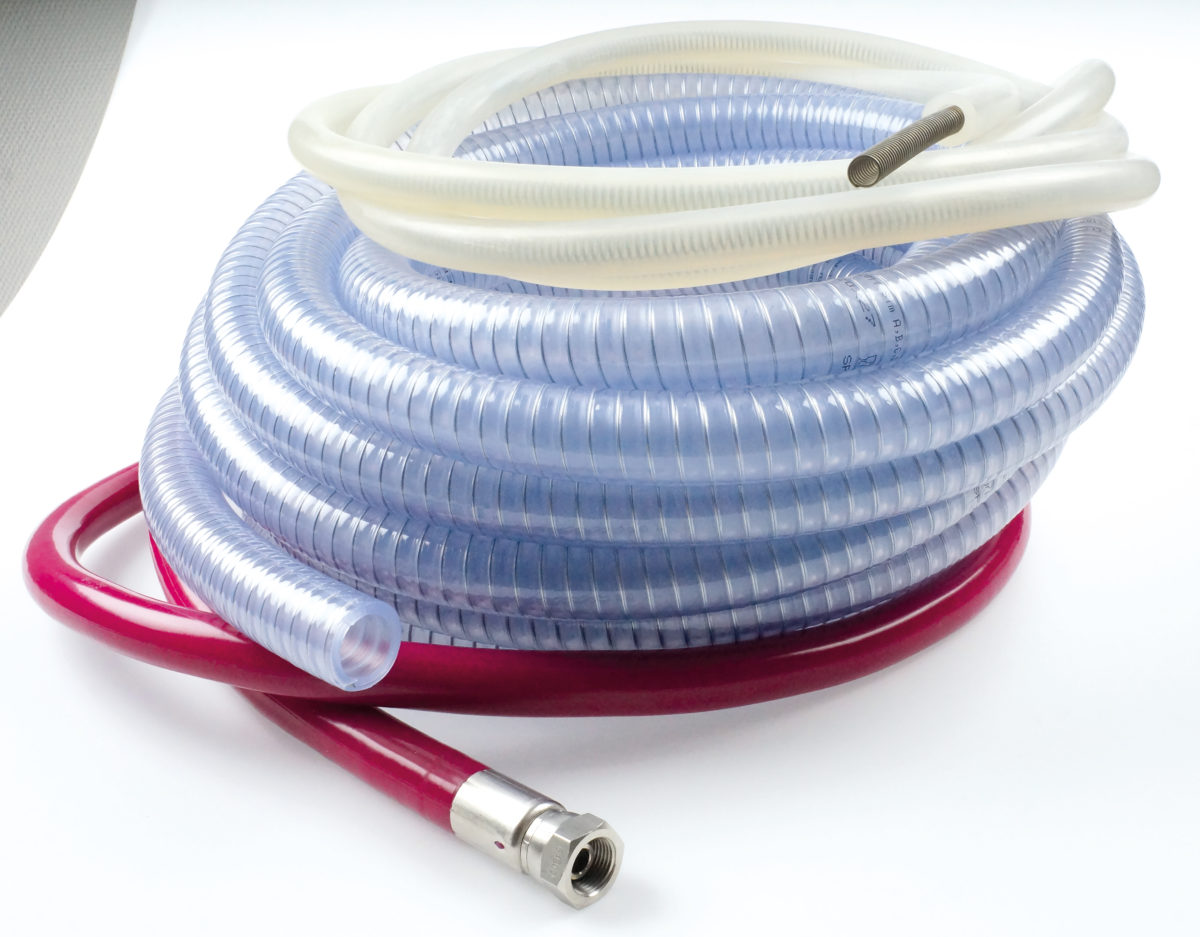

Pipes & Hoses

Metallic
spiral
PVC
hose

 PERFECT FOR VACUUM SYSTEMS
diam.20 mm nut available
Ref. Diam. Int. Diam. Ext. Lengh Temperature Material
ACTUB-PVCSPI 12-18 12 mm 18 mm 30 ml max. 80°C PVC
ACTUB-PVCSPI 20-27 20mm 27 mm 30 ml max. 80°C PVC

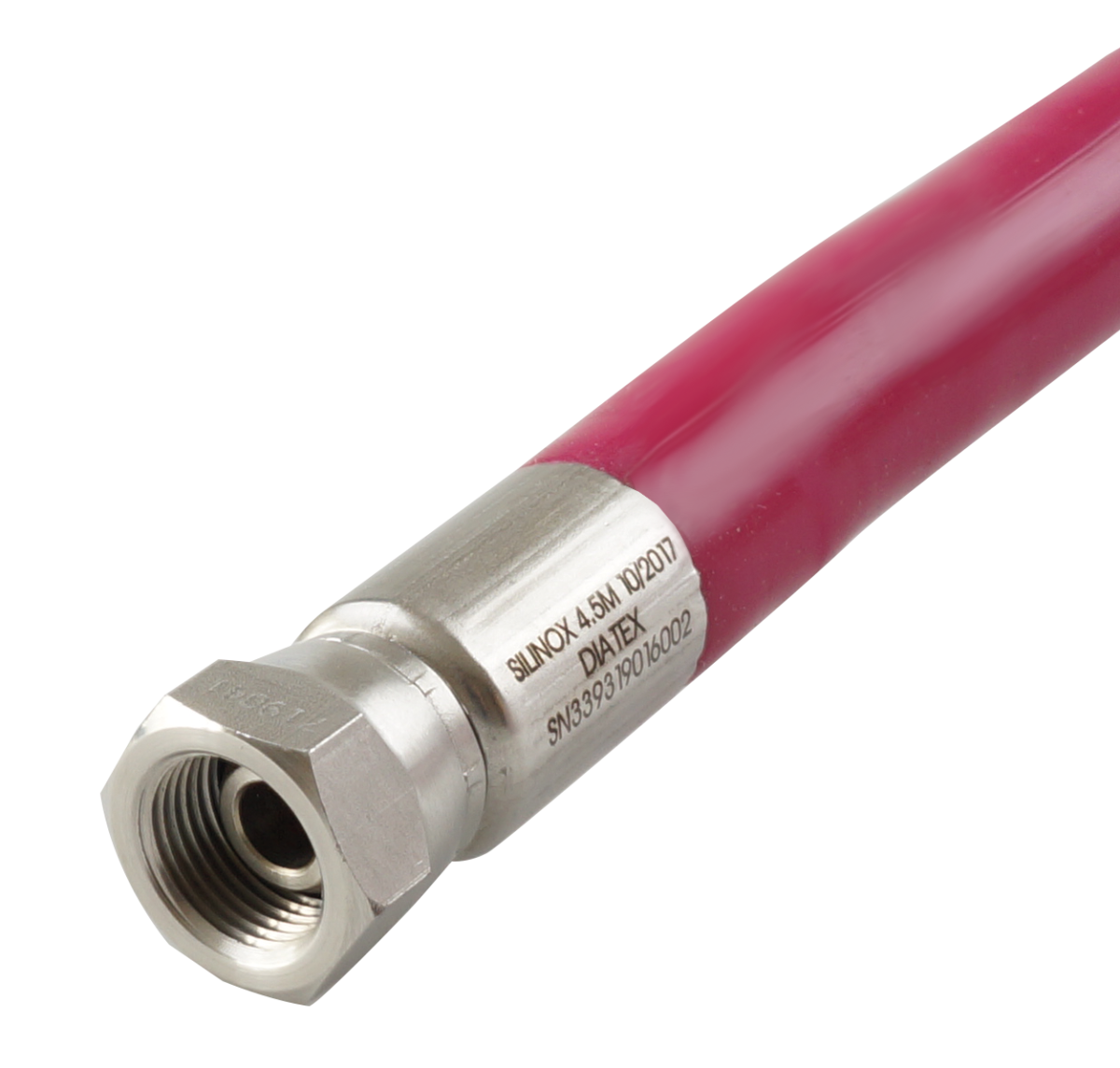

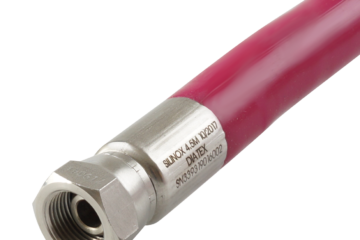

SILINOX

 FOR AUTOCLAVE
PTFE pipe + Steel braid + Spring
Ref. Lengh Temperature Pressure Information
ACTUB-SILINOX10A0100 1 m 220°C 14 bar int. & ext. 1/4″ G Connector
diam. Int. 10 mm diam. Ext. 20 mmOther crimpings on request.
ACTUB-SILINOX10A0200 2 m
ACTUB-SILINOX10A0300 3 m
ACTUB-SILINOX10A0400 4 m
ACTUB-SILINOX10A0600 6 m
ACTUB-SILINOX10A0800 8 m
ACTUB-SILINOX10A01000 10 m
ACTUB-SILINOX10A01200 12 m



Tuyaux silicone Ref. Diam. Int. Diam. Ext. Lengh Temperature Pressure

FOR AUTOCLAVE

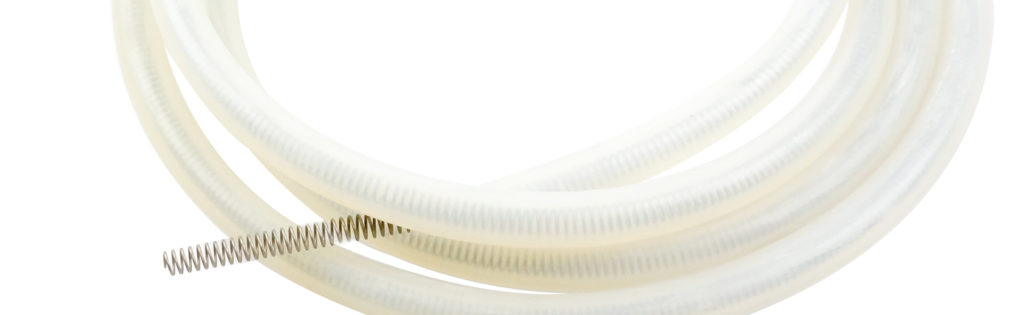

PTFE pipe + Spring

 ACTUB-SILR10-18 10 mm 18 mm 5ml max. 200°C 3 bar ext.
FOR OVEN
SILICONE Pipe		 ACTUB-SIL04-08 4 mm 8 mm 25 ml reel 220°C –
ACTUB-SIL06-12 6 mm 12 mm
ACTUB-SIL07-13 7 mm 13 mm
ACTUB-SIL09-16 9 mm 16 mm
ACTUB-SIL10-18 10 mm 18 mm
ACTUB-SIL10-23 10 mm 23 mm

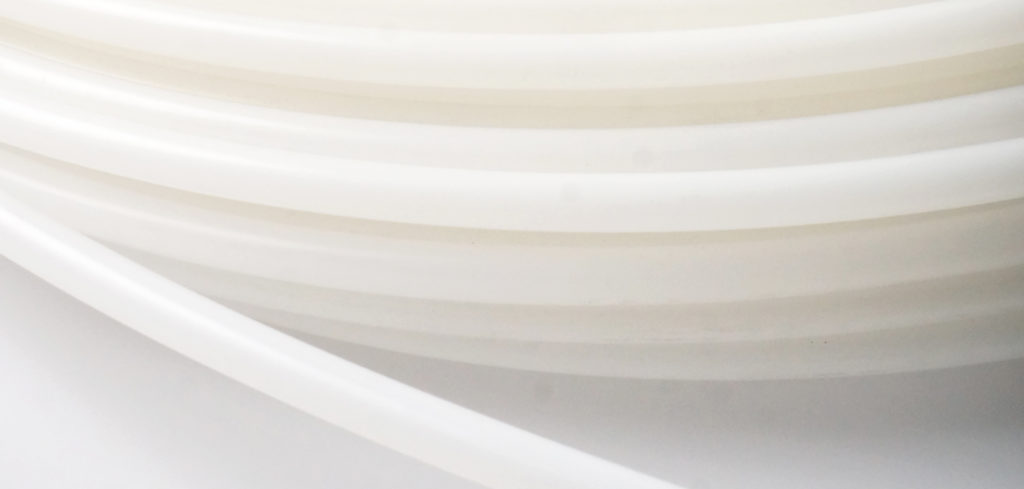

PEBD
PEHD
PTFE
Pipes
Ref. Diam. Int. Diam. Ext. Lengh Temperature Material Information
ACTUB-PEHD08-10 8 mm 10 mm 100 ml max. 90°C PEHD Can be used as resin distributor or vaccum line.
ACTUB-PEHD10-12 10 mm 12 mm 100 ml max. 90°C PEHD
ACTUB-PTFE10-12 10 mm 12 mm 25 ml max. 260°C PTFE
ACTUB-PEBD10-12 10 mm 12 mm 100 ml max. 75°C PEBD
ACTUB-PEBD14-16 14 mm 16 mm 100 ml max. 75°C PEBD

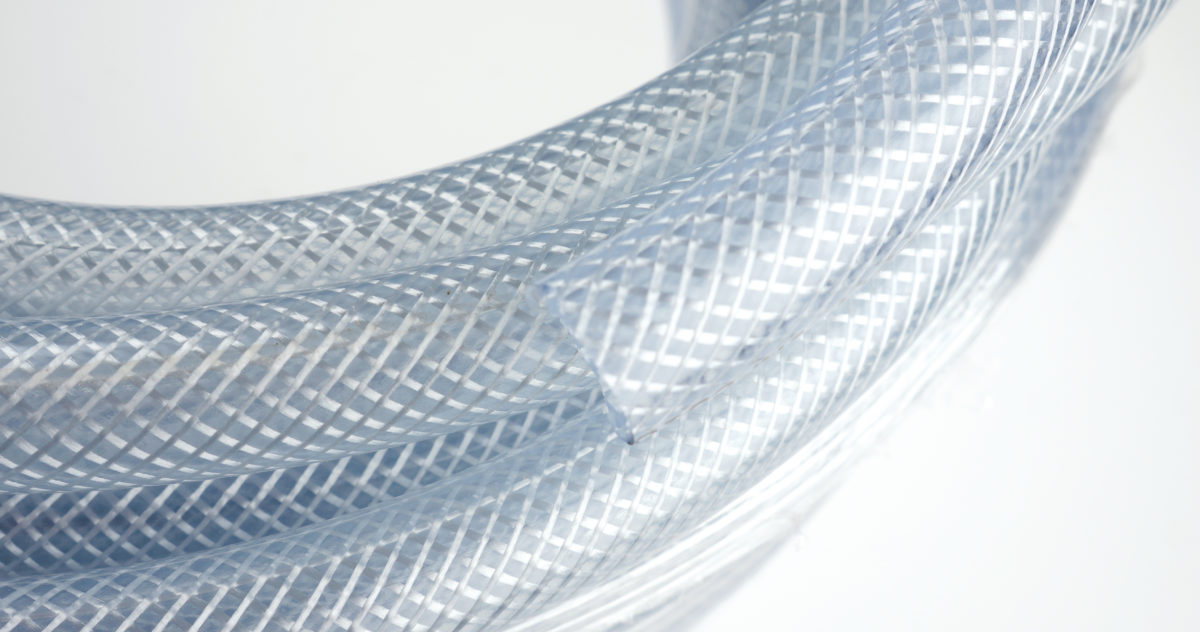

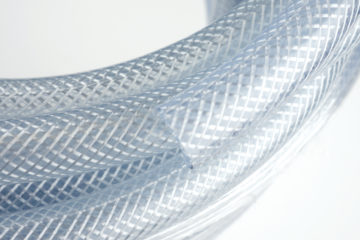

Reinforced
PVC
Pipes
Ref. Diam. Int. Diam. Ext. Lengh Temperature Material Information
ACTUB-PVCHD 12-19 12 mm 19 mm 30 ml max. 80°C PVC Can be used as resin distributor or vaccum line.
ACTUB-PVCHD 15-23 15 mm 23 mm 30 ml max. 80°C PVC
ACTUB-PVCHD 19-27 19 mm 27 mm 31 ml max. 80°C PVC





ACCESSORIES Cutting clamp
ACOUPE/TUBE		 Allows easy cutting of all reinforced PVC hoses.

Not to be used with METALLIC SPIRAL hose.
