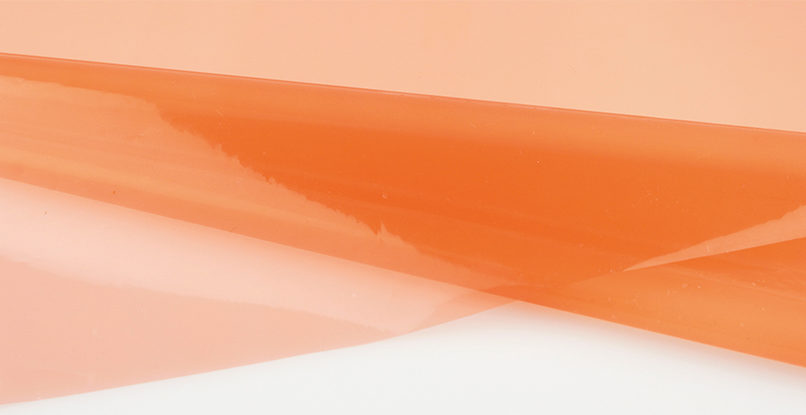

Belonging to the family of fluorinated polymers, this PTFE film is used as a release film for extremely high temperature vacuum bagging applications.
It adds a glossy surface finish to the part. It can be applied in direct contact with the resin.
- High elasticity : may be used on highly developed parts.
- Easy to use.
- Can be used only once.
- Releaseable with all types of resins.
- Does not contaminate resins.
- Very good thermal stability.
This film has a remarkable demoulding capacity and allows parts to obtain a glossy appearance.
It is recommended for thermoplastic and thermoset applications.
Material | Colour | Thickness | Weight | Max. operating temperature |
Packaging |
PTFE | Red | 25 µ | 54 g/m² | 315°C | Roll |
Perforation | Aspect | Length | Standard width | Elongation at rupture |
Resistance to rupture |
||
No | Glossy surfaces | 153 m | 1,22 m | MD | TD | MD | TD |
400 % | 400 % | – | – |
- NP version
- Oven
- Autoclave
